Lesson 1: What Is Embedded Linux?

Óbuda University — Linux in Embedded Systems

This Course

12 weeks. Theory + lab every week. No final exam — the project is the exam.

Weeks	What you learn	What you build
1-3	OS, Linux fundamentals, sensor + driver path	SSH in, explore Linux, MCP9808 + OLED
4-5	Reliability, IoT, then graphics stack	Data logger, secure setup, HDMI display apps
6-9	Boot flow, device tree, drivers, Buildroot	Kernel drivers, custom Linux image
10-12	RT graphics, architecture, demo	Level display, jitter measurement, live demo

The Default Project

 BMI160 IMU ──► SPI Driver ──► Sensor Thread ──►   Renderer ──►      HDMI
   (hw)         (kernel)        (RT core)         (display core)   (output)
                                                   (SDL2 or Qt)

A self-booting, tear-free, RT-measured IMU level display — with data to prove it works.

And propose your own — weather station, robot controller, CAN dashboard, audio visualizer...

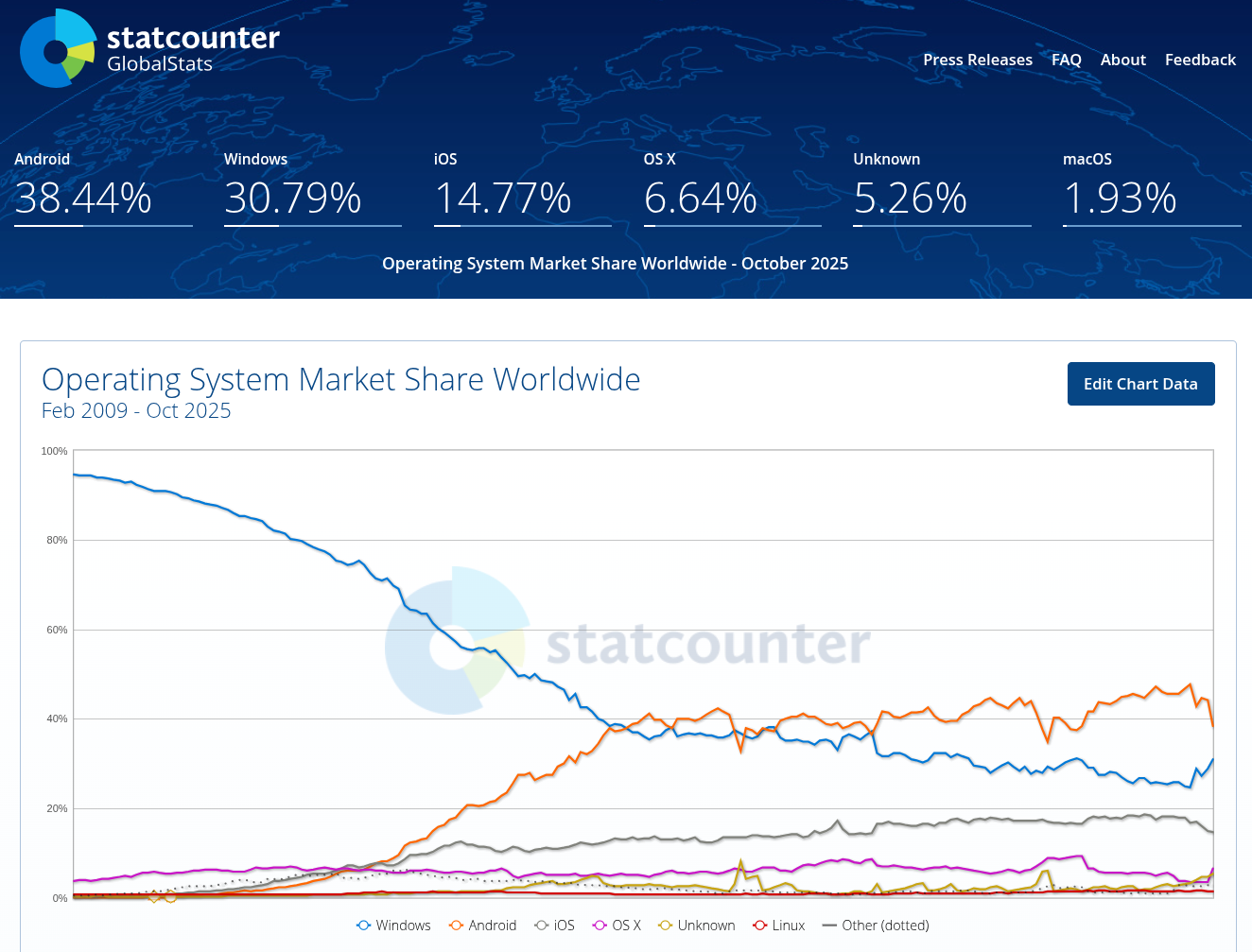

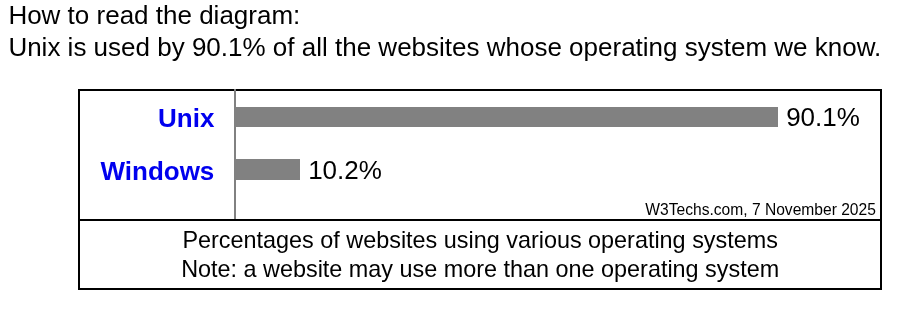

Linux Is Everywhere

center

Linux Is Everywhere

center

Linux Is Everywhere

center

Linux Is Everywhere

center

Linux Is Everywhere

center

Linux Is Everywhere

center

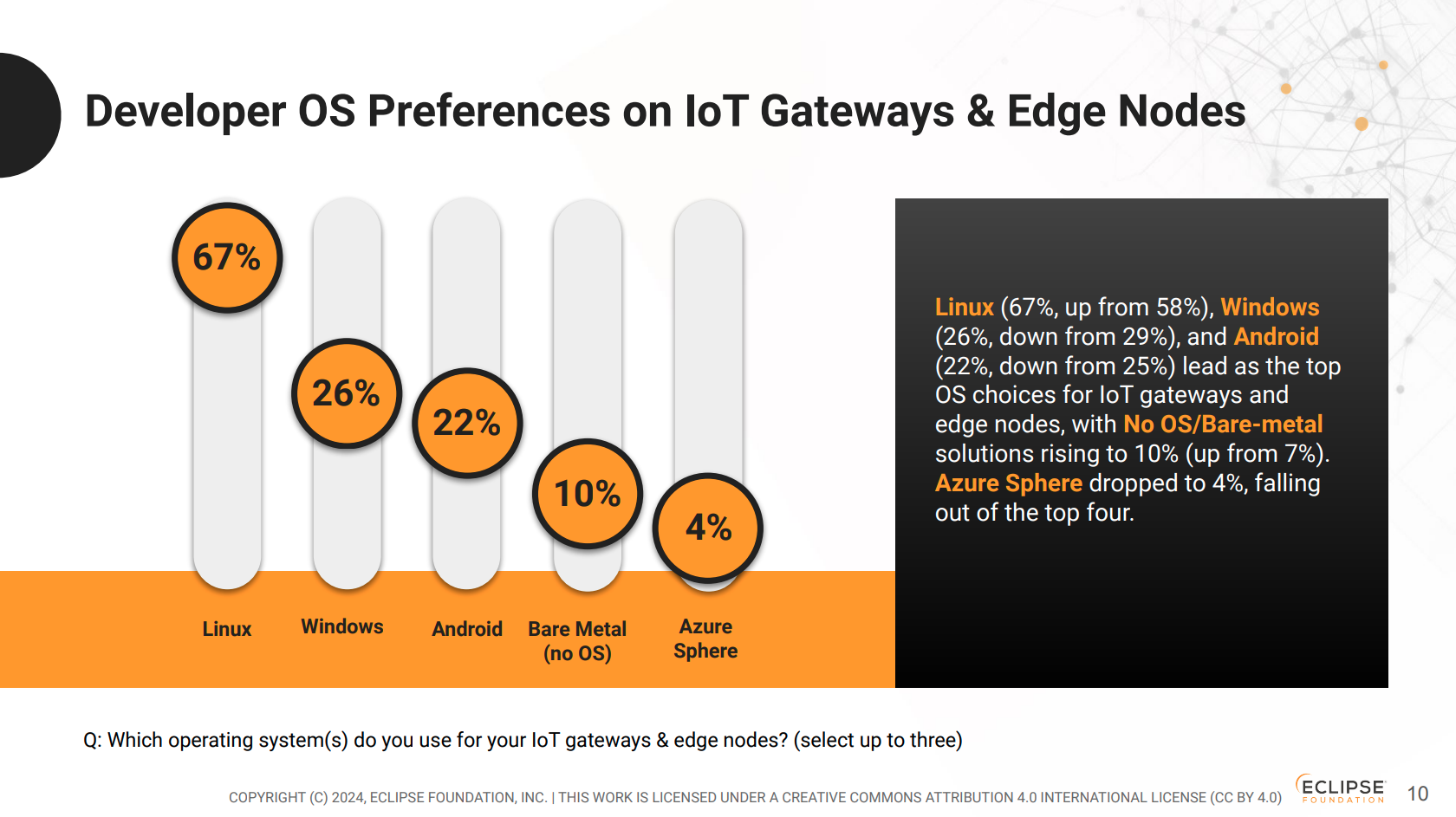

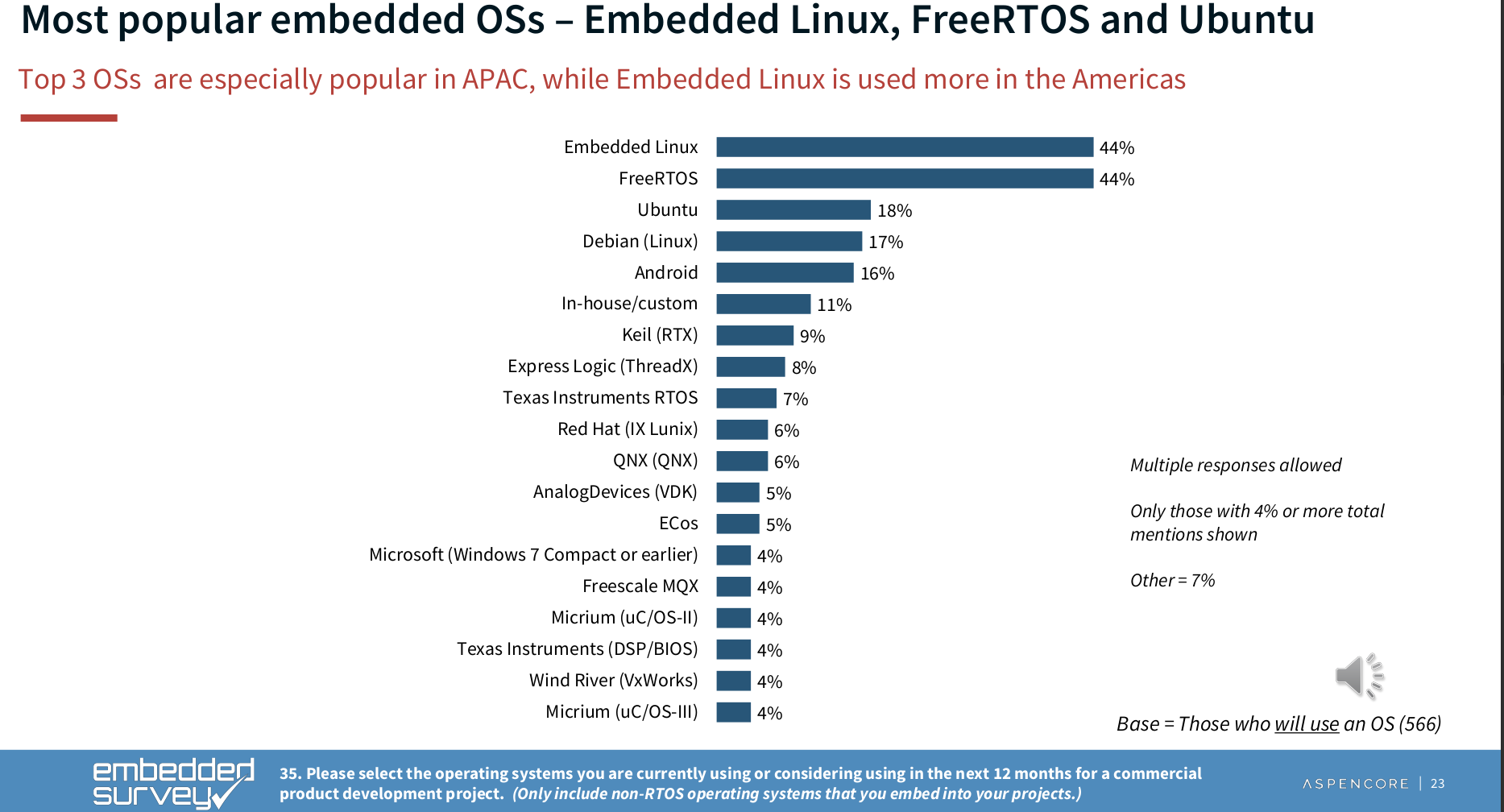

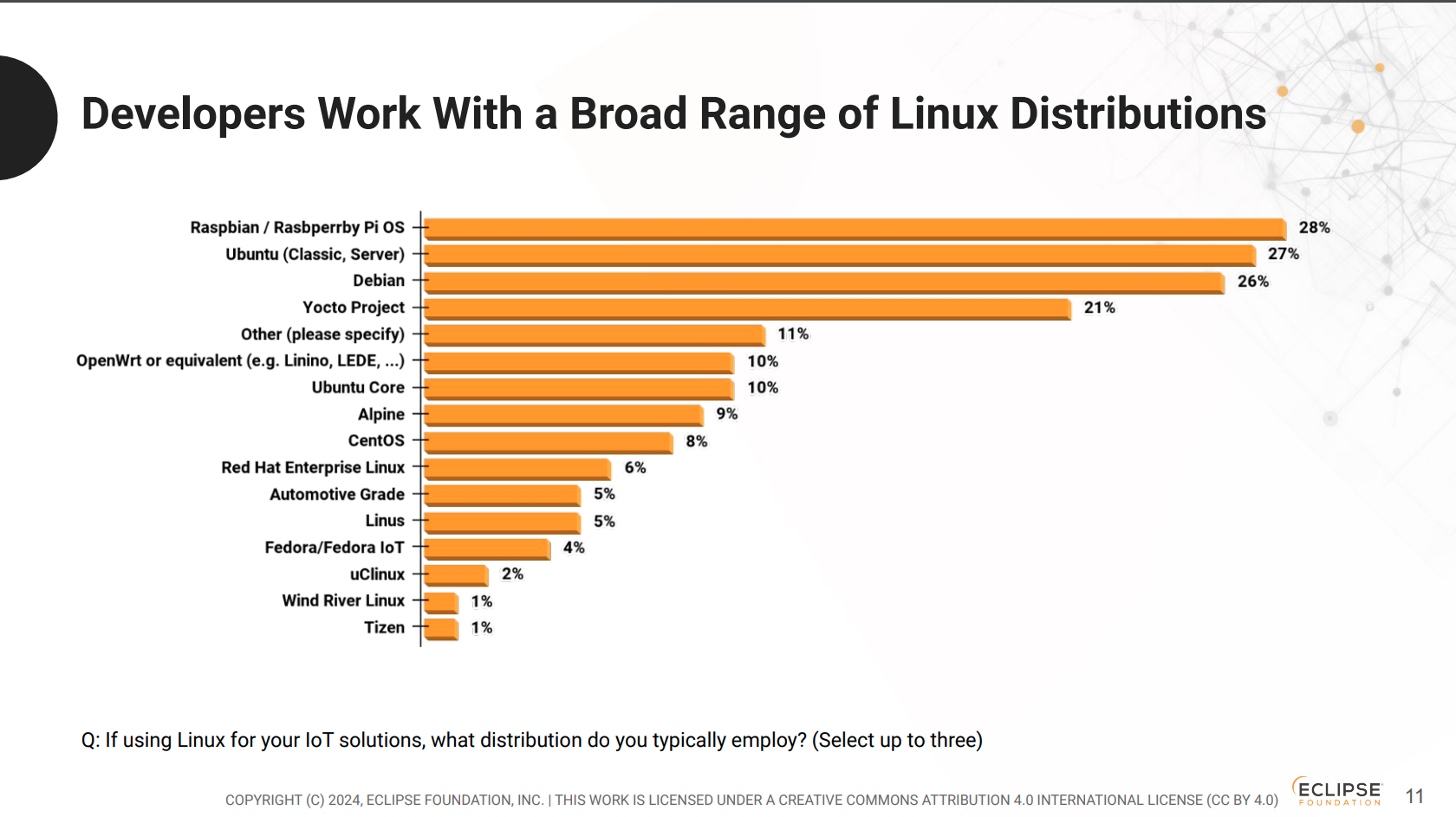

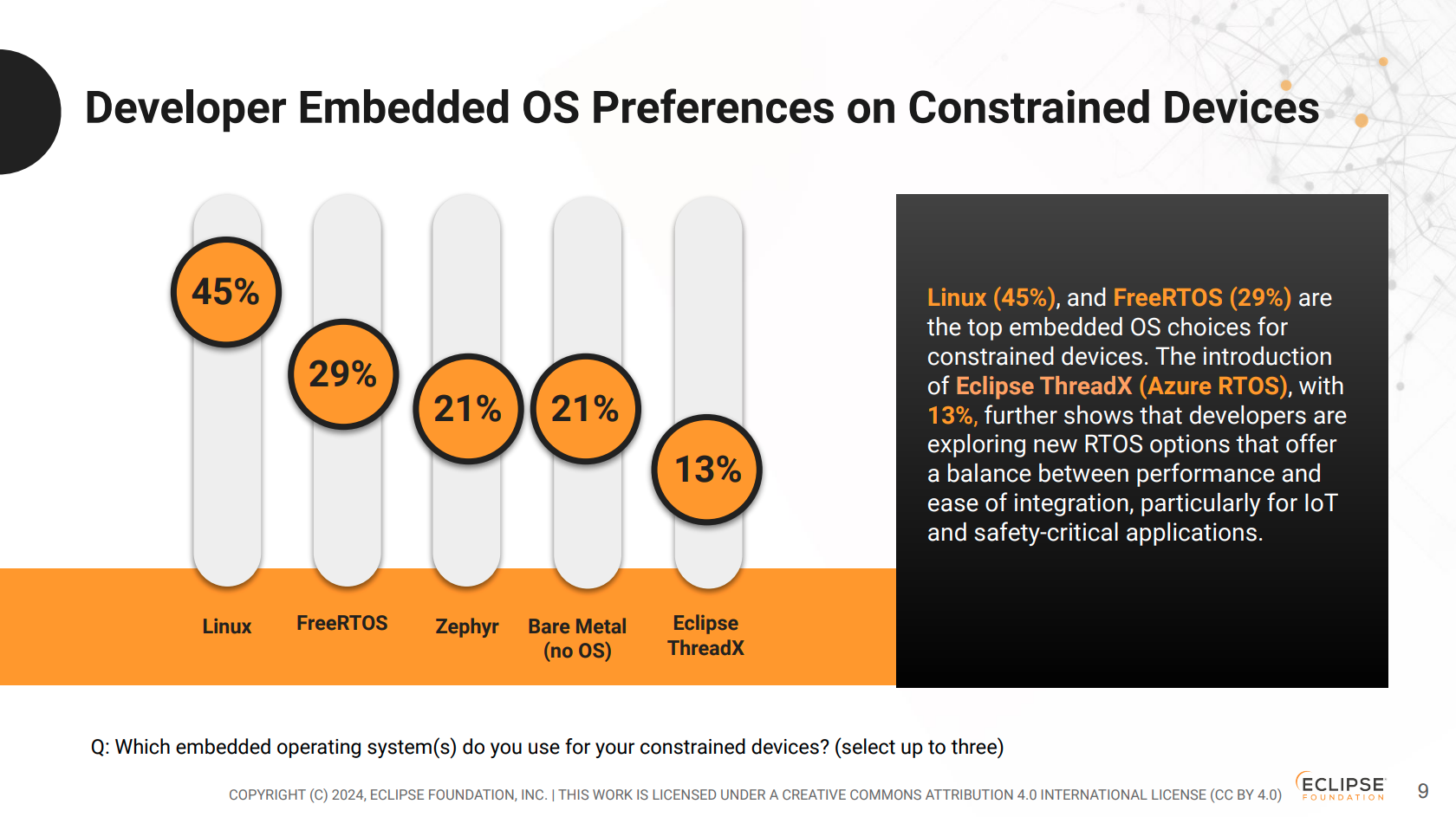

In Embedded? Even More So

center

The Learning Curve Is Real — But Worth It

bg right:50% contain

Weeks 1-3: everything feels unfamiliar
By mid-semester: the pieces connect
By the end: you can build a product from scratch

The payoff is career-defining — embedded Linux skills are in high demand and transferable across industries.

Today's Map

What is an OS? General-purpose vs RTOS
UNIX history — where it all comes from
Where embedded Linux runs
MCU vs MPU vs SoC
The layered stack
Two levels of engineering

What Is an Operating System?

An operating system is the software layer between hardware and applications that manages resources, enforces protection, and provides abstractions so programs don't need to know the details of the hardware they run on.

Without an OS, every application must:

Manage its own memory
Talk directly to hardware registers
Implement its own scheduling
Handle its own fault isolation (or not)

On an MCU like the Pico, you are the OS.

OS Responsibilities

Responsibility	What It Does	Without an OS
Resource sharing	Divides CPU time, memory, and I/O among processes	One program owns everything
Protection	Prevents one process from corrupting another	A bug anywhere crashes everything
Hardware abstraction	Provides uniform APIs (`read()`, `write()`) for diverse hardware	You write register-level code per chip
Scheduling	Decides which task runs and for how long	You manually interleave tasks in a loop

On an MCU, you are the OS — you write the scheduler, the memory manager, and the fault handler. On Linux, the kernel does all of this for you.

General-Purpose OS vs RTOS

Aspect	General-Purpose OS (Linux, Windows)	RTOS (FreeRTOS, Zephyr)
Goal	Maximize throughput and fairness	Guarantee deadlines
Scheduling	Best-effort, time-sharing	Priority-based, deterministic
Latency	Milliseconds (variable)	Microseconds (bounded)
Use case	Servers, desktops, phones	Motor control, safety systems

Many real products combine both: a Linux SoC for networking and UI, plus an MCU with an RTOS for real-time control.

Linux with PREEMPT_RT patches narrows the gap but does not eliminate it.

Where Linux Runs

Platform	Linux Market Share	Examples
Servers	~80%	AWS, Google Cloud, Azure VMs
Mobile	~72% (Android)	Samsung, Pixel, Xiaomi
Supercomputers	100% (Top 500)	Frontier, Fugaku
Embedded / IoT	~65%	Routers, cameras, gateways

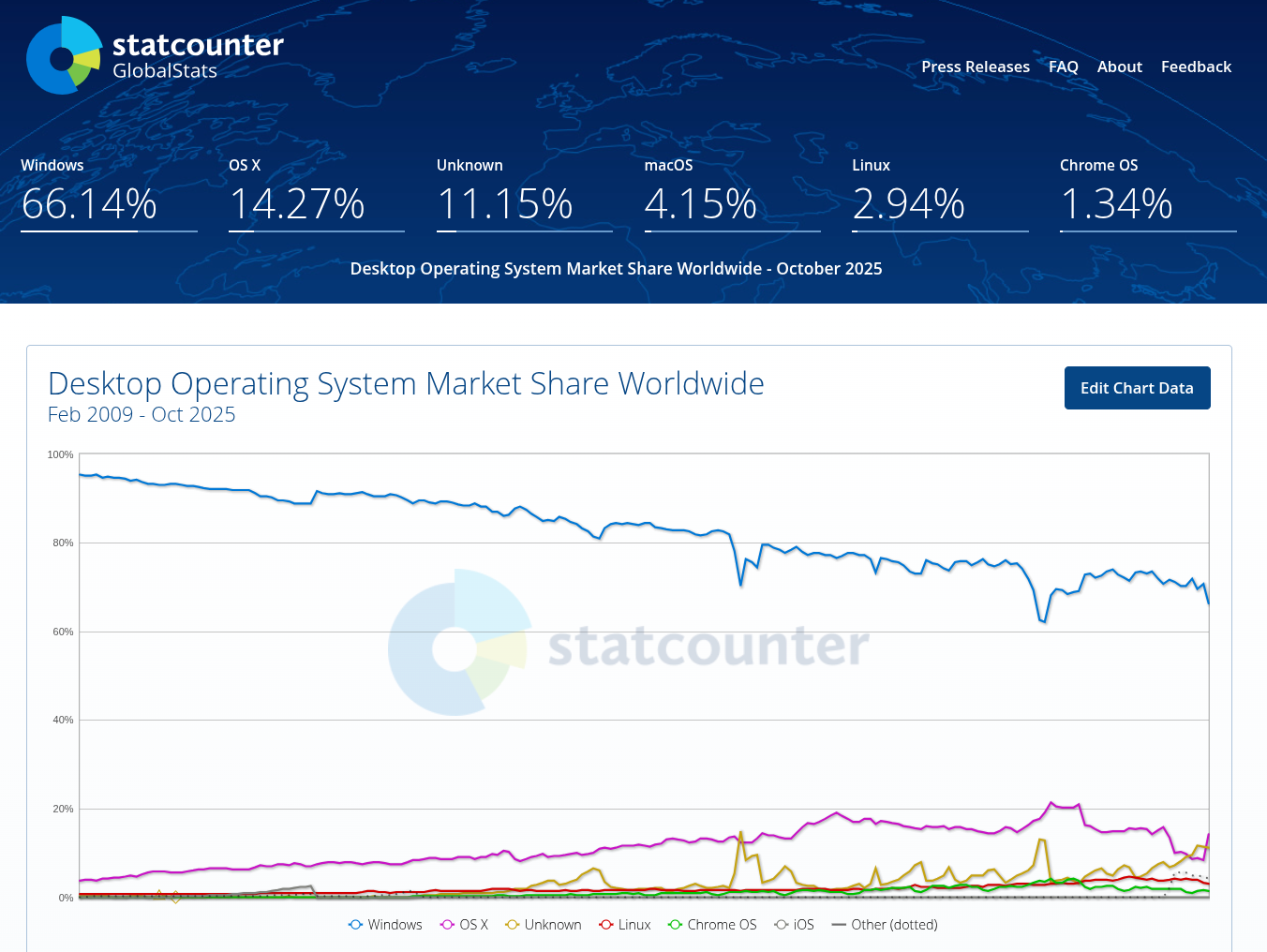

Desktop	~4%	Ubuntu, Fedora workstations

Linux is the dominant OS in every category except desktop. If you work with computing hardware professionally, you will encounter Linux.

Linux Distribution Hell

https://upload.wikimedia.org/wikipedia/commons/1/1b/Linux_Distribution_Timeline.svg

Why Linux Dominates

Free and open source — no per-unit royalty, no vendor lock-in
Portable — runs on ARM, x86, MIPS, RISC-V, and more
Mature — 30+ years of development, thousands of tested drivers
Supported — huge community, vendor BSPs, commercial support (Red Hat, Canonical)
Ecosystem — package managers, build systems, debugging tools
Proven — powers critical infrastructure worldwide

The economic argument matters — but it is nuanced. Many RTOSes are also free (FreeRTOS, Zephyr, NuttX). Commercial ones (VxWorks, QNX) can cost $5–25 per unit. Linux's real advantage is the ecosystem: thousands of drivers, a full networking stack, filesystems, and package management — all included and community-maintained.

Where It All Comes From — UNIX (1969)

bg right:45% contain

Ken Thompson & Dennis Ritchie at Bell Labs, ~1972

Designed on a PDP-7 — less powerful than your calculator
Originally written in assembly, rewritten in C in 1971
First portable OS — the idea that one OS can run on different hardware
Gave us: pipes, processes, "everything is a file", the shell

The UNIX Timeline

  1969  Bell Labs — Ken Thompson & Dennis Ritchie
        ┌──────────────────────────────────┐
        │  UNIX on PDP-7                   │
        │  "Write an OS for ourselves"     │
        │  Multics replacement             │
        └──────────────────────────────────┘
                      │
        1971  Rewritten in C → first portable OS
                      │
        1975  Spreads to universities
                      │
              ┌───────┴───────┐
        AT&T System V       UC Berkeley BSD
        (commercial)        (TCP/IP, virtual memory,
                             sockets — the Internet!)

Key insight: UNIX was rewritten in C in 1971 — making it the first portable operating system. Before this, every OS was tied to one machine.

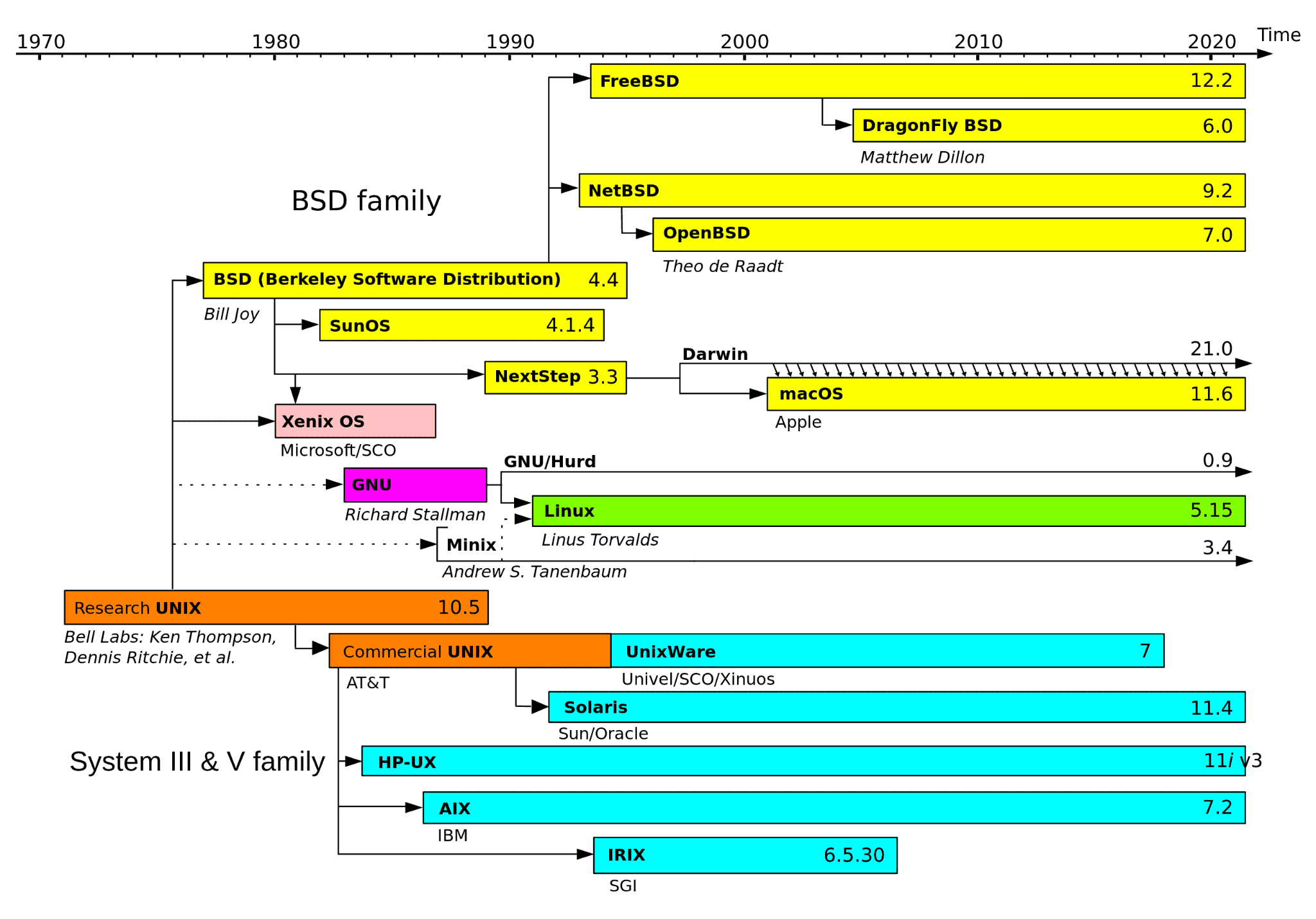

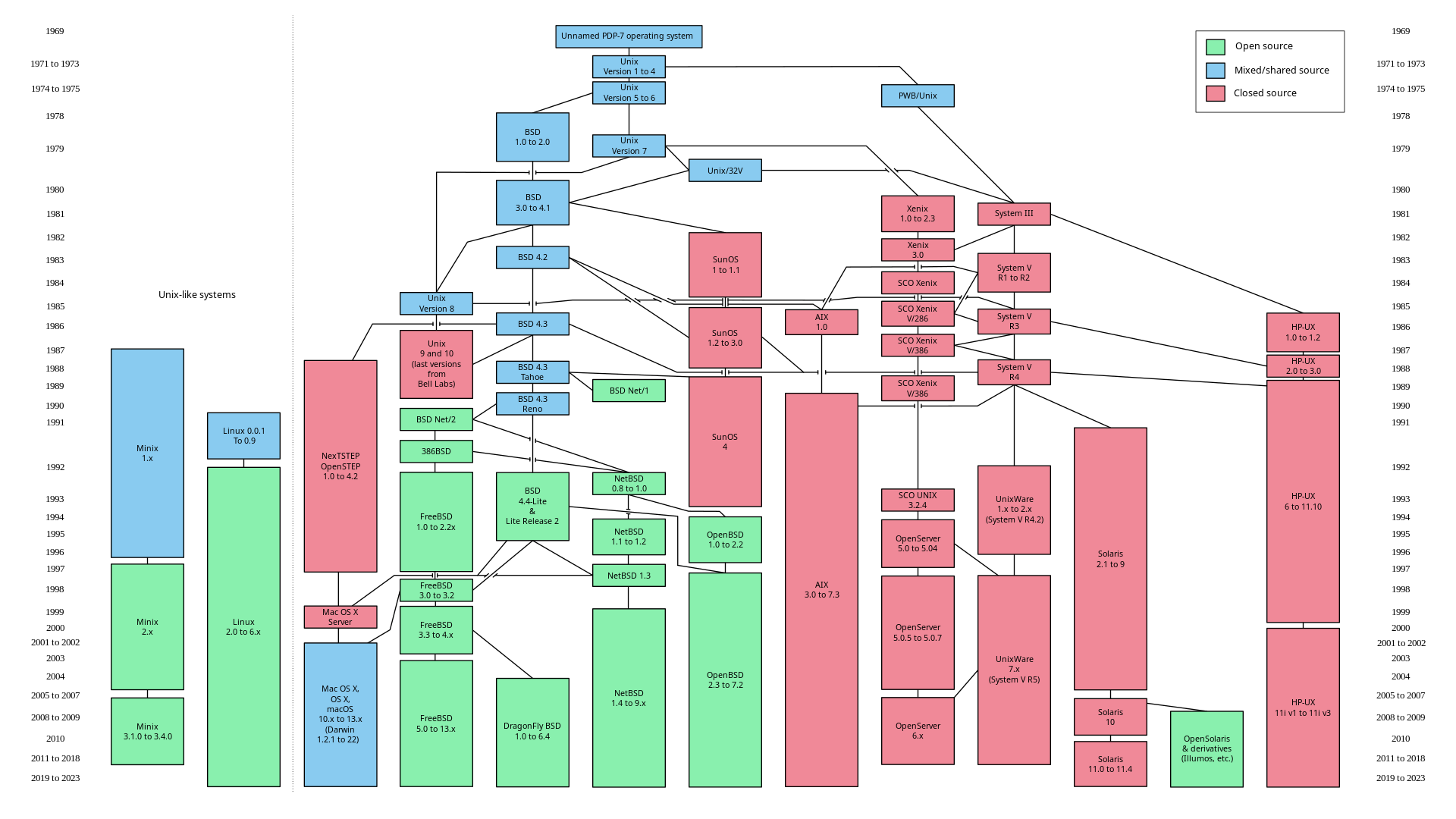

The UNIX like family

The UNIX Fragmentation Problem

By the 1980s, every major vendor had their own UNIX:

Vendor	UNIX Variant
AT&T	System V
UC Berkeley	BSD (4.2, 4.3, 4.4)
Sun	SunOS → Solaris
IBM	AIX
HP	HP-UX
DEC	Ultrix, Tru64
SGI	IRIX

Problem: code written for one UNIX didn't run on another.

Solution attempt: POSIX standard (IEEE 1003) — a common API specification. Helped, but fragmentation persisted. The market needed something different.

GNU + Linux = A Free UNIX (1983-1991)

1983 — Richard Stallman launches the GNU Project ("GNU's Not Unix"): - Goal: a complete free operating system - Built: GCC compiler, Emacs editor, Bash shell, coreutils (~385 tools) - Missing piece: the kernel

1991 — Linus Torvalds (21-year-old Finnish student) writes a kernel:

"I'm doing a (free) operating system (just a hobby, won't be big and professional like gnu)" — Linus, comp.os.minix, Aug 1991

GNU tools + Linux kernel = the first complete, free, UNIX-like OS.

This combination — not either project alone — is what powers embedded systems today.

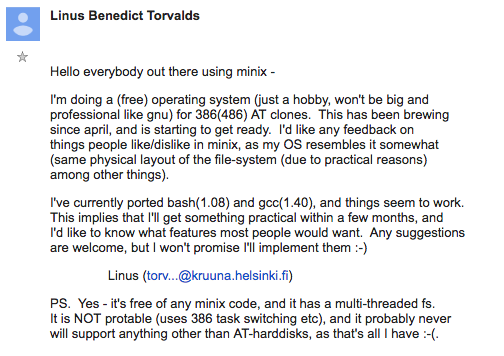

The Post That Started It All

bg right:45% contain

Linus Torvalds, comp.os.minix, 25 August 1991

Posted to a Usenet newsgroup — no GitHub, no website
"just a hobby, won't be big and professional"
Within 3 years: 100+ contributors, networking, first distributions
Today: ~1,700 developers per kernel release, powering the entire internet

Monolithic vs Microkernel — The Debate

1992 — Tanenbaum vs Torvalds (Usenet flame war):

	Tanenbaum (MINIX)	Torvalds (Linux)
Architecture	Microkernel — clean, modular	Monolithic — everything in kernel
Argument	"Linux is obsolete" — microkernels are the future	Pragmatism: monolithic is simpler and faster
Outcome	Academically elegant	Took over the world

The engineering lesson: a working, practical system beats an architecturally pure one. Linux won because it worked on real hardware, accepted contributions from anyone, and solved real problems.

Microkernel ideas survive in QNX (cars), seL4 (safety-critical), and Zephyr (MCUs).

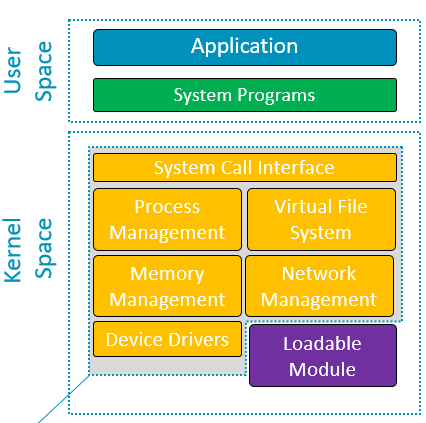

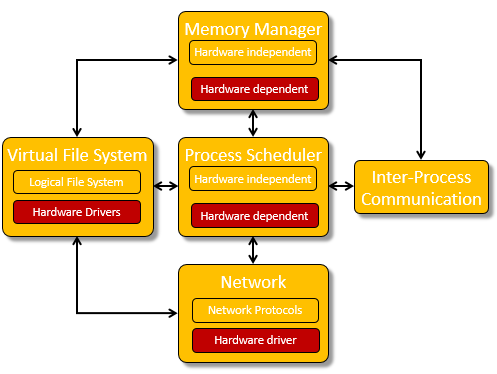

Microkernel vs. Monolithic

bg left:45% contain

right: 45%

From Hobby to Everywhere

  1991  Linux 0.01 — one student, one PC
    │
  1994  Linux 1.0 — networking, first distros
    │
  1999  Linux 2.2 — enterprise-ready, IBM invests $1B
    │
  2003  Android starts (Linux kernel + Java framework)
    │
  2008  First Android phone ships — Linux goes mobile
    │
  2017  100% of Top 500 supercomputers run Linux
    │
  2024  Linux 6.12 — PREEMPT_RT merged into mainline
    │
  Today  Linux runs on everything from $0.50 MCUs
         to Mars rovers (Ingenuity helicopter)

From a Finnish student's hobby to the operating system that runs the world — in 33 years.

MCU vs MPU vs SoC (Part 1)

	MCU	MPU	SoC
What it is	Microcontroller: CPU + RAM + flash in one chip	Microprocessor: CPU only, external memory	System-on-Chip: CPU + GPU + peripherals in one chip
RAM	KB (264 KB on RP2040)	External, MB to GB	Integrated or external, MB to GB
MMU	No (or limited MPU)	Yes	Yes

The MMU (Memory Management Unit) is the key hardware difference that determines whether Linux can run on a given processor.

MCU vs MPU vs SoC (Part 2)

	MCU	MPU	SoC
Typical OS	Bare-metal, FreeRTOS, Zephyr	Linux, QNX, VxWorks	Linux, Android
Examples	RP2040, STM32F4, ATmega328	i.MX6 (older), AM335x	BCM2711 (RPi 4), i.MX8M, Allwinner
Power	mW range (1-500 mW)	Hundreds of mW to Watts	1-10 W typical
Cost	$0.50 - $5	$5 - $30	$5 - $50

In modern embedded design, SoCs have largely replaced standalone MPUs. The boundary between MPU and SoC is blurred — most application processors today are SoCs.

The MMU Dividing Line

Linux requires an MMU (Memory Management Unit) for:

Virtual memory — each process sees its own address space
Process isolation — one process cannot read/write another's memory
Memory protection — kernel memory is shielded from user-space

This is why Linux runs on Cortex-A (with MMU) but NOT on Cortex-M (without MMU) like the Pico's RP2040.

  Cortex-M (no MMU)          Cortex-A (has MMU)
  ┌──────────────┐           ┌──────────────┐
  │  Bare-metal  │           │    Linux     │
  │  FreeRTOS    │           │   Android    │
  │  Zephyr      │           │   Yocto      │
  └──────────────┘           └──────────────┘

There are MMU-less Linux variants (uClinux), but they sacrifice isolation and are rarely used today.

Minimum Hardware for Embedded Linux

Requirement	Minimum	Practical
Processor	32/64-bit with MMU	ARM Cortex-A, RISC-V with S-mode
RAM	~16 MB	64 MB+ (256 MB+ for UI)
Storage	~4 MB (NOR flash)	16 MB+ (NAND, eMMC, SD)
Clock	~100 MHz	500 MHz+
Serial console	UART for debug	UART + network

A Buildroot + BusyBox system fits in 4 MB of flash and 16 MB of RAM.

A Debian-based distribution needs gigabytes of storage and hundreds of megabytes of RAM.

The choice depends on your product constraints, not on what is comfortable for development.

When Bare Metal Breaks Down

As feature count increases:

Linux effort tends to grow roughly linearly (reuse kernel subsystems and existing tooling)
Bare-metal effort grows much faster (you re-implement services yourself)
The gap widens with each added capability: networking, OTA, logging, camera, UI, watchdog/recovery

WiFi, camera, OTA updates, logging, 24/7 watchdog — each feature on bare metal multiplies complexity.

Embedded Linux exists for exactly this inflection point. When one engineer can no longer maintain the firmware, you need an OS.

Embedded Linux = Linux Under Constraints

An embedded Linux system is a standard Linux system engineered to operate within strict constraints:

Boot deadline — the product must be usable within a time budget (e.g., <5 s)
Storage limit — the image must fit in available flash (e.g., 32 MB)
Power budget — the system must run within a power envelope (e.g., 2 W)
Lifecycle — the product must be maintainable for 10+ years
Reliability — the system must survive unexpected power loss without corruption
Security — the attack surface must be minimized (no unused packages)

The main engineering task is choosing what to keep, what to remove, and what to harden.

This is platform engineering — it requires understanding every layer of the stack.

The Engineering Mindset

Your prerequisite taught you to USE Linux. This course teaches you to BUILD embedded Linux systems.

The difference: every byte, every millisecond, every watt matters.

Prerequisite	This Course
`apt install package`	Cross-compile for a 16 MB target
`systemctl start service`	Design the init sequence from scratch
`sudo modprobe driver`	Write the driver, write the device tree
Run on desktop or server	Run on 64 MB RAM, 32 MB flash, 2 W power

You already know the commands. Now you learn why each layer exists and how to engineer them for constrained systems.

Linux vs MCU Firmware — Decision Model

Use Linux when: - You need rich device support (USB, Ethernet, WiFi, camera, display) - You need process isolation (multiple independent applications) - You need complex user-space (web server, database, Python, Node.js) - You need standard networking (TCP/IP, MQTT, HTTPS)

Use MCU firmware when: - Power budget is micro-watts (battery for years) - You need hard real-time guarantees (< 10 us latency) - The application is simple and well-defined (single control loop) - Cost target is < $2 per unit

Many products use both — an MCU for real-time control connected to a Linux SoC for networking and UI.

Concrete Comparison (Part 1)

	RPi Pico (MCU)	RPi 4 (Embedded Linux)	Desktop Linux
CPU	Cortex-M0+ @ 133 MHz	Cortex-A72 @ 1.5 GHz	x86-64 @ 3-5 GHz
RAM	264 KB (on-chip)	1-8 GB (external DDR4)	8-64 GB (DDR5)
Storage	2 MB flash (on-chip)	8-64 GB microSD/eMMC	256 GB - 2 TB SSD
Boot time	<100 ms	5-30 s (tunable to <2 s)	15-60 s

The boot time difference is significant: an MCU is ready almost instantly. Linux must initialize the kernel, mount filesystems, and start services.

Concrete Comparison (Part 2)

	RPi Pico (MCU)	RPi 4 (Embedded Linux)	Desktop Linux
Power	20-50 mW	2-7 W	50-300 W
OS	Bare-metal / MicroPython	Raspberry Pi OS (Debian)	Ubuntu, Fedora
Networking	None built-in (Pico W: WiFi)	Ethernet + WiFi + BT	Full networking stack
Process isolation	None (single address space)	Full (MMU + user/kernel)	Full (same as embedded)

The same Linux kernel runs on both the Raspberry Pi 4 and a desktop. The difference is in the hardware resources available and the system configuration.

Real Product Examples

MCU (bare-metal / RTOS): - Thermostat controller — reads temperature, drives relay, simple display - Motor driver — PWM generation, current sensing, PID loop at 10 kHz - Wireless sensor node — sample, transmit, sleep for minutes

Embedded Linux: - Home gateway / router — NAT, DHCP, firewall, web config UI - IP camera — video encode, motion detection, RTSP streaming, cloud upload - Industrial HMI — touchscreen UI, Modbus, data logging, remote access

Desktop Linux: - Development workstation — IDE, compiler, debugger, simulation - Server — web services, databases, containerized workloads

"Use Both" — How?

When a product needs both Linux (networking, UI, storage) and hard real-time (motor control, safety), three hardware architectures are common:

Architecture	How It Works	Example SoCs / Boards
Heterogeneous SoC	Cortex-A + Cortex-M on the same chip	STM32MP1, i.MX8M Plus, TI AM62x
External MCU	Separate MCU connected via UART / SPI / CAN	RPi + STM32, BeagleBone + Arduino
FPGA fabric	Programmable logic alongside a CPU	Xilinx Zynq, Intel Cyclone V SoC

The choice depends on latency needs, BOM cost, and how tightly the two domains must communicate.

Heterogeneous SoC: STM32MP1

One chip, two worlds — no external wiring needed:

  ┌─────────────────────────────────────────────┐
  │  STM32MP157                                 │
  │                                             │
  │  Cortex-A7 (650 MHz)   Cortex-M4 (209 MHz)  │
  │  ┌───────────────┐     ┌──────────────┐     │
  │  │ Linux         │     │ FreeRTOS     │     │
  │  │ • Web UI      │ ◄─► │ • PID loop   │     │
  │  │ • OTA updates │RPMsg│ • 1 kHz ADC  │     │
  │  │ • Data logger │     │ • Motor PWM  │     │
  │  └───────────────┘     └──────────────┘     │
  │          shared memory (SRAM)               │
  └─────────────────────────────────────────────┘

M4 boots in < 50 ms (sensors running before Linux is up). Communication: RPMsg over shared SRAM.

External MCU: RPi + STM32

Two separate chips, connected by a bus:

   Raspberry Pi 4                        STM32F4
  ┌──────────────┐     UART/SPI     ┌──────────────┐
  │ Linux        │ ◄──────────────► │ FreeRTOS     │
  │ • Dashboard  │   commands +     │ • Sensor 1kHz│
  │ • Cloud MQTT │   telemetry      │ • Motor ctrl │
  │ • Camera     │                  │ • Safety     │
  └──────────────┘                  └──────────────┘

Pros: Use any MCU you want, easy to prototype (off-the-shelf boards). Cons: Two power supplies, two PCBs (or wires), bus latency (~1 ms for UART).

Best when: existing MCU firmware already works, or MCU needs certifications the SoC doesn't have.

When to Use Which Architecture

Requirement	Heterogeneous SoC	External MCU	FPGA
Hard RT + Linux on one board	Best fit	Works (with wires)	Overkill
Existing MCU firmware to reuse	Port needed	Plug and play	Port needed
BOM cost sensitive (high volume)	Lowest (one chip)	Two chips	Expensive
Sub-µs determinism	M4 core: ~1 µs	MCU: ~1 µs	Fabric: < 100 ns
Certification boundary	Shared silicon	Clean separation	Clean separation

Rule of thumb: Start with a heterogeneous SoC (STM32MP1, NXP i.MX8M). Fall back to an external MCU if you need a certified safety boundary or have existing firmware. Use FPGA only for sub-microsecond requirements.

The Layered Stack

Every embedded Linux system follows this layered architecture:

 ┌─────────────────────────────────┐
 │       Application Layer         │  ← Your product logic
 ├─────────────────────────────────┤
 │     Init System (systemd)       │  ← Service management
 ├─────────────────────────────────┤
 │        Linux Kernel             │  ← Drivers, scheduling, memory
 ├─────────────────────────────────┤
 │     Bootloader (U-Boot)         │  ← Hardware init, kernel loading
 ├─────────────────────────────────┤
 │  Hardware (SoC, RAM, Storage)   │  ← Physical platform
 └─────────────────────────────────┘

Each layer has one job and communicates only with its neighbors. You cannot skip layers.

The Stack in Practice

bg right:50% contain

Each layer has a single responsibility:

Bootloader — gets RAM working, loads the kernel
Kernel — manages all hardware, schedules processes
Init (systemd) — starts services in order, restarts crashes
Application — your product code

A bug at any layer affects everything above it.

Layer Roles

Bootloader (U-Boot / barebox) — initializes clocks, RAM, and storage; loads the kernel image into memory; passes hardware description (device tree) to the kernel
Kernel — manages CPU scheduling, memory allocation, device drivers, filesystems, networking; enforces process isolation via MMU
Init system (systemd / BusyBox init) — brings up user-space services in the correct order; supervises and restarts crashed services; manages dependencies
Application layer — implements the actual product behavior; runs as regular Linux processes

Each layer trusts the layer below it and provides services to the layer above it.

If the bootloader is broken, nothing else works. If the kernel panics, all applications die. The stack is only as strong as its weakest layer.

Two Levels of Engineering (Part 1)

	Application Development	Platform / System Development
What you build	Product features: UI, data processing, network protocols	The OS image: kernel config, drivers, root filesystem
Language	Python, C++, Go, Rust, JavaScript	C (kernel), Shell, Makefile, Kconfig
Interfaces you use	System calls, `/dev/`, sysfs, D-Bus, sockets	Hardware registers, bus protocols (I2C, SPI), DMA

These are two distinct skill sets. Most engineers specialize in one, but understanding both is essential for embedded Linux work.

Two Levels of Engineering (Part 2)

	Application Development	Platform / System Development
When you crash	Your process dies; others continue	The kernel panics; everything stops
Typical job title	Embedded Software Engineer	BSP Engineer, Platform Engineer
This course examples	Python sensor reader, SDL2 display app	Device tree editing, kernel module, Buildroot image

In this course, you will work at both levels: writing application code in Python and C, and configuring the platform with Buildroot and kernel modules.

The Boundary in Practice

  ┌────────────────────────────────────────────────────────┐
  │  Application    Python: read sensor, render UI,        │
  │                 send MQTT, log data                    │
  ├──────────────── system calls, /dev/, sysfs ────────────┤
  │  Platform       kernel driver, device tree,            │
  │                 systemd services, Buildroot config     │
  ├──────────────── hardware registers, bus protocols ─────┤
  │  Hardware       SoC, sensors, display, storage         │
  └────────────────────────────────────────────────────────┘

Example flow: A Python app calls open("/dev/i2c-1") and read(). The kernel's I2C driver translates this into hardware register accesses on the SoC's I2C controller, which communicates with the sensor over the I2C bus.

The application developer never touches registers. The platform engineer never parses sensor data.

Cross-Compilation: Why and How

On your laptop, you compile and run on the same machine. In embedded Linux, the target often has no compiler — or not enough RAM to run one.

  Host (x86_64)                    Target (ARM Cortex-A)
  ┌──────────────────┐             ┌──────────────────┐
  │  Source code     │             │  16 MB flash     │
  │  Cross-compiler  │ ──────────► │  64 MB RAM       │
  │  Libraries       │   binary    │  No compiler     │
  │  8 GB RAM, SSD   │             │  No package mgr  │
  └──────────────────┘             └──────────────────┘

Toolchain components: cross-compiler, cross-linker, target sysroot (headers + libraries for the target architecture).

You cannot apt install on a 16 MB system. You cross-compile everything on a powerful host.

Toolchain in Practice

The toolchain name encodes its purpose:

arm-linux-gnueabihf-gcc
 │    │     │       │
 │    │     │       └── compiler (gcc)
 │    │     └────────── EABI: hard-float (hardware FPU)
 │    └──────────────── OS: Linux
 └───────────────────── Architecture: ARM

Build System	Toolchain Role
Buildroot	Downloads, configures, and builds the toolchain automatically
Yocto	Generates a complete SDK with sysroot and cross-tools
Manual	Download pre-built from ARM / Linaro, set `PATH`

The sysroot contains target headers and libraries — it is the "fake root filesystem" the cross-compiler links against.

Power Management Fundamentals

Embedded Linux devices often run on batteries. The kernel provides three levers:

DVFS (Dynamic Voltage and Frequency Scaling) Lower clock speed → lower voltage → power drops cubically with frequency.

CPU Idle States (C-states)

State	Power	Wake Latency	Description
C0	Full	0	Active — executing instructions
C1	~60%	~1 us	Halt — clock stopped, state preserved
C2	~30%	~100 us	Sleep — caches may flush
C3	~5%	~1 ms	Deep sleep — most logic powered down

Trade-off: Idle deeper = save more power, but wake slower. A 1 ms wake latency means you cannot respond to events faster than 1 ms from deep sleep.

Why DVFS Is So Effective: The f³ Relationship

CMOS dynamic power dissipation:

\[P_{dynamic} = C \cdot V^2 \cdot f\]

$C$ = switched capacitance (fixed by chip design)
$V$ = supply voltage
$f$ = clock frequency

Naively $P \propto f$ — halve the clock, halve the power. But that misses a crucial coupling.

Voltage and Frequency Are Coupled

In CMOS, faster switching needs higher voltage to overcome transistor thresholds:

\[V = k \cdot f\]

$k$ is a chip-specific constant (depends on manufacturing process — threshold voltage, gate oxide). Vendors publish the valid V-f pairs as an OPP table (Operating Performance Points).

Substituting $V = k \cdot f$ into $P = C \cdot V^2 \cdot f$:

\[P = C \cdot (k \cdot f)^2 \cdot f = C \cdot k^2 \cdot f^3\]

Power scales with the cube of frequency.

The f³ Effect in Practice

Halving frequency → halve voltage → power drops to $(1/2)^3 = 1/8$

Frequency	Voltage	Relative Power
1.5 GHz	1.0 V	100%
1.0 GHz	0.8 V	~34%
750 MHz	0.7 V	~18%
600 MHz	0.6 V	~10%

Running at 60% frequency saves ~90% power, not 40% — because voltage drops too.

Static (leakage) power does not follow f³. At very low voltages, leakage dominates and further reduction gives diminishing returns.

Power Budget Example

Scenario: Battery-powered sensor node. 3000 mAh battery at 3.3 V.

State	Current	Duration per Cycle
Active (sample + transmit)	150 mA	5 ms
Deep sleep (C3)	0.5 mA	9,995 ms

Average current = (150 × 5 + 0.5 × 9995) / 10000 = 0.575 mA

Battery life = 3000 / 0.575 = 5,217 hours ≈ 217 days

But: if wake latency from C3 is 1 ms, and your sampling window is only 2 ms, you lose 50% of your active time just waking up. Choose C2 instead: less power savings, but 100 us wake.

Power management is an engineering trade-off, not a checkbox.

Reliability Features

Three patterns you will learn in this course:

  WATCHDOG                OVERLAYFS               A/B UPDATES
  ┌───────────┐           ┌──────────┐            ┌──────────┐
  │ App hangs │           │ Power    │            │ Update   │
  │ > 30s     │           │ lost     │            │ fails    │
  └─────┬─────┘           └─────┬────┘            └─────┬────┘
        │                       │                       │
        ▼                       ▼                       ▼
  ┌───────────┐           ┌──────────┐            ┌──────────┐
  │ HW timer  │           │ Read-only│            │ Boot     │
  │ resets    │           │ root     │            │ previous │
  │ system    │           │ survives │            │ slot     │
  └───────────┘           └──────────┘            └──────────┘

Watchdog: hardware timer resets the system if software stops responding
Overlayfs: read-only base + writable overlay — power loss cannot corrupt the base image
A/B updates: two root partitions — if the new one fails, boot the old one

Each solves a different failure mode. Together, they make embedded Linux field-deployable.

The Embedded Linux Ecosystem

Three dominant build systems — not distros, but build systems that create custom Linux images:

System	Philosophy	Typical Use
Buildroot	Simple, fast, Makefile-based	Small images (4-100 MB), single-purpose devices
Yocto / OpenEmbedded	Flexible, layer-based, industrial	Large-scale products, multi-team, long lifecycle
OpenWRT	Router-focused, package feeds	Network equipment, gateways

Contrast with the "download Raspberry Pi OS" approach:

	Raspberry Pi OS	Buildroot
Image size	2-4 GB	8-50 MB
Packages	30,000+ available	Only what you select
Boot time	20-40 s	2-8 s
Reproducibility	Depends on apt state	Deterministic from config

We start with stock Raspberry Pi OS (fast, familiar). By Week 9, you build your own.

Block 1 Summary

Key takeaways from Block 1:

Embedded Linux = Linux under constraints — boot time, storage, power, reliability, and security are all engineering targets
The MMU is the hardware dividing line — no MMU means no Linux (use an RTOS or bare-metal instead)
The stack is layered — bootloader, kernel, init system, application — each layer has one job
Two engineering levels — application development (above the syscall boundary) and platform development (below it)

These four ideas form the foundation for everything else in this course.

Block 2

Group Exercise: "Pick Your OS"

The Key Trade-off

	Stock (Raspberry Pi OS)	Custom (Buildroot)
Setup	Minutes	Hours to days
Image size	1-4 GB	4-100 MB
Control	Take what you get	Choose every package
Best for	Prototyping	Production

Linux is "free as in puppy" — no license cost, but you must feed it.

In this course: start with stock, end with custom.

Four Building Blocks

Every embedded Linux image needs these four:

Component	Example
Toolchain	`arm-linux-gnueabihf-gcc`
Bootloader	U-Boot
Kernel	Linux, configured for your hardware
Root filesystem	Libraries, binaries, config — everything in `/`

Missing any one = board does not start.

Choose Your OS

Your team receives a product specification (next 4 slides).

Your task:

Read the requirements and constraints carefully
Decide: Linux, RTOS, bare-metal, or a combination?
Sketch which components run on which processor
Identify the biggest technical risk

Defend your choice!

There is no single correct answer — but there are answers that ignore constraints. The goal is to practice the decision process.

Product A — Smart Thermostat

Requirements: - Temperature reading every 10 seconds - WiFi upload to cloud service (MQTT) - Local OLED display showing current and target temperature - Fan/heater relay control (on/off + PWM speed) - Remote firmware updates (OTA)

Constraints: - BOM cost < $8 (high volume, 100k+ units) - 5-year battery life (or mains-powered with battery backup) - Must survive unexpected power loss without data corruption - Consumer product — must be reliable and low-maintenance

Hint: Consider whether a WiFi-capable MCU (ESP32) can handle this alone, or whether you need Linux for OTA and cloud connectivity.

Product B — Agricultural Drone

Requirements: - Flight controller running PID loops at 400 Hz - Camera with computer vision (crop health analysis) - GPS waypoint navigation with autonomous flight - Telemetry downlink to ground station (900 MHz radio) - Mission logging with post-flight data export

Constraints: - Control loop latency < 2.5 ms (hard real-time) - 30-minute flight time (power budget is critical) - Must handle GPS signal loss gracefully (failsafe hover/return) - Outdoor operation: -10 C to +50 C, vibration, wind

Hint: No single processor can do both 400 Hz PID control and OpenCV. Think about what runs where.

Product C — Industrial PLC Replacement

Requirements: - 8 analog inputs sampled at 1 kHz (4-20 mA sensors) - Modbus TCP server for SCADA integration - Local HMI with 7" touchscreen - Historian: log all I/O data for 30 days - IEC 61131-3 runtime (ladder logic / structured text)

Constraints: - 24/7 operation, 10+ year product lifecycle - Scan cycle time < 100 ms (deterministic) - Safety certification (IEC 62443 for cybersecurity) - Must operate without internet connectivity

Hint: Industrial systems value determinism and long-term support over features. Consider which OS gives you certifiable determinism.

Product D — Portable Medical Monitor

Requirements: - ECG sampling at 500 Hz (3-lead) - SpO2 (pulse oximetry) and blood pressure measurement - 7" color touchscreen with real-time waveform display - BLE connectivity to hospital information system - 8-hour battery life on a single charge

Constraints: - IEC 62304 Class B software lifecycle (medical device) - Alarm response time < 1 second (patient safety) - Field-updatable firmware (with rollback on failure) - Must pass EMC testing (medical environment)

Hint: Medical devices often use a safety-critical MCU for signal acquisition and alarming, with a Linux SoC for display and connectivity. Consider the certification boundary.

Discussion Framework

For each product, systematically answer:

Question	Why It Matters
Which tasks are time-critical?	Determines if you need an RTOS or hard real-time
Which tasks need rich OS features?	Networking, filesystem, display → Linux territory
What is the boot time budget?	Seconds vs minutes changes your architecture
What is the certification requirement?	Certified RTOS vs Linux PREEMPT_RT vs uncertified
Can you split across MCU + Linux?	Dual-processor designs are common and often optimal

The best embedded systems are often heterogeneous: an MCU handles real-time tasks while a Linux SoC handles everything else, connected via UART, SPI, or shared memory.

Key Takeaways

Embedded Linux = Linux under constraints — boot, storage, power, reliability, security
The MMU is the dividing line — no MMU → no Linux
The stack is layered — bootloader → kernel → init → app
Tool choice follows system needs — Linux, RTOS, or bare-metal based on requirements
Many real products use both — MCU for real-time + Linux for everything else

Project Ideas for This Course

The level display is the default — but you can propose your own:

Project	What you build	Key skills
Weather station	Sensors → MQTT → web dashboard	Networking, systemd, Flask
Data logger appliance	Resilient CSV logger with REST API	overlayfs, Buildroot, watchdog
Audio spectrum analyzer	USB mic → FFT → SDL2 bars	Real-time, DMA, graphics
CAN bus dashboard	MCP2515 → gauges on HDMI	socket-CAN, drivers, SDL2
Robot remote control	Browser → WebSocket → motors	Camera stream, PWM, web UI
Digital oscilloscope	ADC → trigger → waveform display	RT kernel, SDL2, DRM/KMS

Full list with details: Project Ideas

What's Next

Today's lab: SSH into your Raspberry Pi and complete baseline Linux exploration checks.

Next week: Lesson 2 — How Linux Works (processes, files, permissions, kernel vs user space)

See you in the lab!
