Lesson 9: Reliability, Updates & Security

Óbuda University -- Linux in Embedded Systems

"The power goes out during an update. Your device is on the public internet. What happens?"


Today's Map

  • Block 1 (30 min): Storage & filesystems — storage types (SD, eMMC, NOR/NAND), why ext4 loses data on power cut, write endurance, embedded-friendly filesystems.
  • Block 2 (45 min): Reliability — read-only rootfs, overlayfs, A/B partition updates, watchdogs (hardware + systemd), design rules.
  • Block 3 (45 min): IoT networking and security — physical layers, MQTT, IoT architecture, attack surfaces, CVE case studies, hardening, OTA frameworks.

Storage & Filesystems

Why your filesystem choice determines whether the device survives a power cut


Embedded Storage Types

  ┌─────────────┐  ┌─────────────┐  ┌─────────────┐  ┌─────────────┐
  │   SD Card   │  │    eMMC     │  │  NOR Flash  │  │  NAND Flash │
  │             │  │             │  │             │  │             │
  │  Removable  │  │  Soldered   │  │  Soldered   │  │  Soldered   │
  │  FTL inside │  │  FTL inside │  │  No FTL     │  │  No FTL     │
  │  Block dev  │  │  Block dev  │  │  MTD device │  │  MTD device │
  │  /dev/mmcXX │  │  /dev/mmcXX │  │  /dev/mtdX  │  │  /dev/mtdX  │
  └─────────────┘  └─────────────┘  └─────────────┘  └─────────────┘
       ▲                 ▲                 ▲                 ▲
   Prototyping      Production       Bootloader,        Large storage
   Hobby boards     Consumer HW      small config       Raw NAND + UBI
   Pi, BeagleBone   Phones, TVs      Execute-in-place   Industrial

Your Pi boots from an SD card — a removable flash device with a built-in Flash Translation Layer (FTL). Production devices typically use soldered eMMC or raw NAND.


How Flash Memory Works

Flash memory cannot overwrite data in place. It must erase a large block before writing new data.

  HDD / RAM:                       Flash (NAND / NOR):
  ─────────────────                ─────────────────────────────
  Write anywhere, any time         1. Erase entire block (128 KB)
  Overwrite single byte            2. Write pages (4 KB) into block
  No wear from writes              3. Block wears out after N cycles

P/E cycle = one Program/Erase cycle. Each erase physically degrades the floating-gate transistors. After enough cycles, the cell can no longer reliably hold a charge.

Flash type Typical P/E endurance Why
SLC (1 bit/cell) 100,000 cycles One voltage level, easy to distinguish
MLC (2 bits/cell) 3,000-10,000 Four levels, tighter margins
TLC (3 bits/cell) 1,000-3,000 Eight levels, most consumer SD cards

Consumer SD cards are mostly TLC — cheap but the lowest endurance.


FTL: The Flash Translation Layer

Raw flash is hard to use: you can't overwrite, blocks wear out, bad blocks appear. The FTL is a firmware layer inside SD cards and eMMC that hides this complexity.

  ┌─────────────────────────────────────────┐
  │  Linux sees:  /dev/mmcblk0              │
  │  "Just a block device, like a hard disk"│
  └──────────────┬──────────────────────────┘
                 │  block read/write
  ┌─────────────────────────────────────────┐
  │  FTL firmware (inside the card)         │
  │                                         │
  │  • Logical → physical block mapping     │
  │  • Wear leveling (spread writes evenly) │
  │  • Bad block management                 │
  │  • Garbage collection                   │
  │  • Write buffering                      │
  └──────────────┬──────────────────────────┘
  ┌─────────────────────────────────────────┐
  │  Raw NAND flash cells                   │
  └─────────────────────────────────────────┘

NOR and raw NAND have no FTL — Linux must manage wear leveling itself (via UBI/UBIFS or JFFS2).


Storage Comparison

Property SD Card eMMC NOR Flash NAND Flash
Capacity 1-512 GB 4-256 GB 256 KB - 64 MB 128 MB - 8 GB
Read speed 25-100 MB/s 100-400 MB/s 50-100 MB/s 20-100 MB/s
Write speed 10-60 MB/s 50-200 MB/s 0.1-1 MB/s 5-40 MB/s
Write endurance 1K-10K cycles 3K-100K cycles 100K cycles 1K-10K cycles
Boot from? Yes (slow) Yes (fast) Yes (XIP) Yes (with loader)
Removable? Yes No No No
Filesystem ext4, F2FS ext4, F2FS JFFS2, raw UBIFS + UBI
Typical cost Low Medium High/byte Low/byte

Pi 4: boots from SD card or USB. Pi CM4: has eMMC option (faster, more reliable).


What Happens When Power Dies Mid-Write

  Application: write(fd, data, 4096)
  ┌─────────────────────────────────────────┐
  │  Page cache (RAM)                       │
  │  Data sits here -- NOT on disk yet      │
  │  Linux delays writes for performance    │
  └──────────────┬──────────────────────────┘
                 │  writeback (kernel decides when)
  ┌─────────────────────────────────────────┐
  │  Block device (SD / eMMC / flash)       │
  │  4 KB block partially written           │◄── POWER DIES HERE
  └─────────────────────────────────────────┘

Result: file contains garbage. Metadata (directory entries, inode tables) may also be corrupted. Filesystem may not mount on next boot.


ext4: The Desktop Filesystem

ext4 uses a journal — a write-ahead log that records what it intends to do before doing it.

  Normal write:
  1. Write intent to journal ──► "will update inode 42 + block 1000"
  2. Write actual data to disk
  3. Mark journal entry complete

  Power cut after step 1:
  ──► On boot, replay journal ──► metadata consistent
  ──► But DATA may be lost (only metadata is journaled by default)
ext4 mode Journals Power-cut safety
journal (data=journal) metadata + data Safest, slowest, 2× write amplification
ordered (default) metadata only Metadata safe, data may be stale
writeback metadata only Fastest, data can be garbage after crash

ext4 default mode protects the filesystem structure, NOT your data.


Why ext4 Is Problematic for Embedded

Problem Impact
Write amplification Journal writes + data writes = 2-3× more wear
Large erase blocks Flash erases 128-512 KB at a time, ext4 writes 4 KB
No wear leveling awareness ext4 doesn't know about flash internals
Recovery time Journal replay on large partition can take minutes
Not power-cut safe for data Default mode loses data, only metadata survives

ext4 works on SD cards and eMMC because the FTL inside the card handles wear leveling and bad block management. But it's still not ideal.


Write Endurance: The Hidden Limit

SD card rated 3,000 P/E cycles. System logs 1 MB/minute. Card has 32 GB.

  Wear-leveled writes per day:
    1 MB/min × 60 × 24 = 1,440 MB/day

  FTL spreads writes across the card:
    32,000 MB ÷ 1,440 MB/day = ~22 days per full pass

  Card lifetime:
    3,000 cycles × 22 days = ~180 years  ✓  (if only data writes)

But: journal writes, temp files, swap, apt cache multiply actual writes 5-10×.

  Realistic lifetime:  180 years ÷ 10 = ~18 years ✓  (still OK)
  With swap on SD:     Swap writes 10-100× more ──► ~2-18 months ✗

Rule: Never enable swap on flash. Use zram (compressed RAM) if needed.


Embedded-Friendly Filesystems

Filesystem Type Best for Key property
SquashFS Read-only, compressed Root filesystem images 50-70% smaller, no writes = no corruption
EROFS Read-only, compressed Newer alternative to SquashFS Lower CPU overhead, better random read
F2FS Read-write, log-structured eMMC/SD data partitions Designed for flash, lower write amplification
JFFS2 Read-write, log-structured Raw NOR flash (<64 MB) Wear leveling built-in, mounts slow
UBIFS Read-write, journaling Raw NAND flash Works on top of UBI volume manager
tmpfs RAM-backed /tmp, overlayfs upper Zero flash wear, lost on reboot

The safest filesystem is the one that never writes. That leads us to the most important embedded reliability technique...


Read-Only Root Filesystem

Now that you know why writes corrupt — eliminate them


The Core Idea

You just saw: writes can corrupt files, metadata, or the entire filesystem on power loss. Even ext4's journal only saves the structure, not your data.

The simplest solution: don't write to the root filesystem at all.

If the root filesystem is never modified during operation, it cannot be corrupted by a power cut.

  • No dirty write buffers to lose
  • Every boot is identical — known-good state
  • Rollback is trivial — the image never changes

Consumer routers, set-top boxes, and ATMs all use this pattern.

But applications need to write... /tmp, /var/log, /etc all expect writes. Solution: Overlayfs.


How Overlayfs Works

  ┌─────────────────────────────────────────┐
  │         Merged View  ( / )              │
  │   Applications see a normal writable    │
  │   filesystem -- reads and writes work   │
  └──────────┬──────────────┬───────────────┘
             │              │
  ┌──────────▼──────┐  ┌────▼───────────────┐
  │  Upper Layer    │  │  Lower Layer       │
  │  (read-write)   │  │  (read-only)       │
  │                 │  │                    │
  │  tmpfs in RAM   │  │  SD card rootfs    │
  │  or separate    │  │  base image        │
  │  partition      │  │  never modified    │
  └─────────────────┘  └────────────────────┘

Overlayfs Read and Write Paths

  READ:                              WRITE:
  ─────────────────────────          ─────────────────────────
  App reads /etc/hostname            App writes /etc/hostname
       │                                  │
       ▼                                  ▼
  Check upper layer                  Copy-up from lower to
  ── found? ──► return it            upper (if needed)
       │ no                               │
       ▼                                  ▼
  Check lower layer                  Write lands in upper
  ── found? ──► return it            layer ONLY
       │ no                               │
       ▼                             Lower layer is NEVER
  File not found                     modified

Upper layer shadows lower. If a file exists in both, the upper version wins.


Reboot = Clean Slate + Persistent Data

If the upper layer is RAM-backed (tmpfs), power cycle discards all changes. System boots with pristine lower layer -- known-good state, every time.

But sensor logs, calibration, and config must survive. Solution: separate data partition.

  ┌────────────────────────────────────────┐
  │  Partition Layout                      │
  ├────────────────────────────────────────┤
  │  /dev/mmcblk0p1  │ boot    │ FAT32     │
  │  /dev/mmcblk0p2  │ rootfs  │ ext4 RO   │
  │  /dev/mmcblk0p3  │ data    │ ext4 RW   │
  └────────────────────────────────────────┘

Corrupted data partition does NOT prevent boot. Use fsync() after every critical write.


A/B Partition Updates

Atomic, verifiable, recoverable


The Update Problem

Deploying firmware to a remote device is dangerous. If an update is interrupted -- power cut, network drop, corrupted download -- the device must NOT end up unbootable.

Three principles of safe updates:

Principle Meaning
Atomic Fully succeeds or fully fails -- no half-updated state
Verifiable Check cryptographic signature + checksum before switching
Recoverable If new image fails, automatically fall back to previous

The most common strategy: A/B partition layout with automatic rollback.


A/B Partition Layout

  ┌─────────────────────────────────────────────┐
  │  Storage Layout                             │
  ├──────────────────┬──────────────────────────┤
  │  boot partition   │  Bootloader + flags     │
  ├──────────────────┼──────────────────────────┤
  │  Partition A      │  rootfs v2.1 [ACTIVE]   │
  ├──────────────────┼──────────────────────────┤
  │  Partition B      │  rootfs v2.0 [INACTIVE] │
  ├──────────────────┼──────────────────────────┤
  │  data partition   │  Persistent user data   │
  └──────────────────┴──────────────────────────┘

Cost: doubles the rootfs storage requirement. Benefit: the device is never bricked by a bad update.


A/B Update Flow

  1. Device checks server ──► "v2.2 available"
  2. Download image to INACTIVE partition (B)
     (active partition A is untouched)
  3. Verify checksum + signature
     ── fail? ──► discard, keep running A
  4. Set boot flag: "try B next boot"
  5. Reboot into B
  6. B boots OK? ──► Mark B as GOOD
     B fails?   ──► Watchdog fires
                    ──► Reboot into A (rollback)

Key: never modify the running partition.


What "Atomic" Really Means

  WRONG (in-place update):          RIGHT (A/B update):

  ┌──────────────┐                  ┌──────────────┐
  │ rootfs v2.1  │ ◄── overwrite    │ rootfs v2.1  │ untouched
  │              │     in progress  │  [ACTIVE]    │
  │  CORRUPTED   │                  ├──────────────┤
  │  if power    │                  │ rootfs v2.2  │ ◄── write
  │  cuts here   │                  │  [INACTIVE]  │     here
  └──────────────┘                  └──────────────┘
  Device bricked.                   Power cut? A still works.

In-place updates are never safe for field-deployed devices.


The Boot Flag State Machine

  ┌─────────┐   update written   ┌───────────┐
  │  A good │ ─────────────────► │  try B    │
  │  B idle │                    │ A fallback│
  └─────────┘                    └─────┬─────┘
       ▲                               │
       │  watchdog timeout             │ B boots OK
       │  (B failed)                   ▼
       │                         ┌───────────┐
       └──────────────────────── │  B good   │
                 rollback        │  A idle   │
                                 └───────────┘

The bootloader reads these flags on every boot to decide which partition to load.


Watchdogs

The last line of defense


Why Watchdogs Exist

Even with a reliable filesystem and robust updates, software can still hang: memory leak over days, deadlock from a rare race condition, driver stuck in infinite retry loop.

On a remote device, nobody is watching. Watchdogs recover automatically.

  ┌──────────────────────────────────────────────┐
  │  Hardware Watchdog Timer                     │
  │                                              │
  │  ┌──────┐  kick   ┌──────┐  kick   ┌──────┐  │
  │  │ 15s  │ ──────► │ 15s  │ ──────► │ 15s  │  │
  │  │      │ reset   │      │ reset   │      │  │
  │  └──────┘         └──────┘         └──────┘  │
  │                                              │
  │  If no kick arrives:  0s ──► HARD REBOOT     │
  └──────────────────────────────────────────────┘

Two Levels of Defense

  ┌─────────────────────────────────────────────┐
  │  Level 1: systemd software watchdog         │
  │                                             │
  │  Monitors individual services               │
  │  Restarts hung service within seconds       │
  │  "My app crashed" ──► restart just the app  │
  ├─────────────────────────────────────────────┤
  │  Level 2: Hardware watchdog (SoC timer)     │
  │                                             │
  │  Monitors the entire system                 │
  │  Forces hard reboot if systemd itself hangs │
  │  "Everything is frozen" ──► full reboot     │
  └─────────────────────────────────────────────┘

Level 1 catches app failures. Level 2 catches kernel/init failures. Together: defense in depth.


Hardware Watchdog in Practice

On Raspberry Pi:

# Enable the hardware watchdog kernel module
sudo modprobe bcm2835_wdt

# Opening the device starts the timer!
cat /dev/watchdog
# System reboots in ~15 seconds if nothing kicks

Warning: opening /dev/watchdog starts the countdown. If your kicking process crashes, the hardware will reboot the system. This is a feature, not a bug.


Try It Now: Watchdog Status (5 min)

Check if the hardware watchdog is available and inspect its configuration:

# Is the watchdog device present?
ls -la /dev/watchdog*

# Check watchdog state (if module is loaded)
cat /sys/class/watchdog/watchdog0/state 2>/dev/null

# See the timeout value
cat /sys/class/watchdog/watchdog0/timeout 2>/dev/null

# Check if systemd is configured to use it
systemctl show -p WatchdogDevice -p RuntimeWatchdogUSec

Is the watchdog currently active? What is the timeout? Do NOT open /dev/watchdog unless you are prepared for a reboot.

Tutorial: Data Logger Appliance — Section 4: Watchdog Theory: Section 3: Watchdogs


systemd Watchdog Integration

[Service]
Type=notify
ExecStart=/usr/bin/my-sensor-app
WatchdogSec=30
Restart=on-watchdog
RestartSec=5
Setting Meaning
WatchdogSec=30 App must call sd_notify("WATCHDOG=1") every 30s
Restart=on-watchdog If notification stops, restart the service
RestartSec=5 Wait 5s before restarting

Application side — the app must notify systemd periodically:

import sdnotify
n = sdnotify.SystemdNotifier()
while running:
    do_work()
    n.notify("WATCHDOG=1")  # "I'm alive" — must arrive within WatchdogSec

systemd handles service-level recovery; hardware watchdog handles system-level recovery.


Combined Watchdog Architecture

  ┌──────────────────────────────────┐
  │  my-sensor-app                   │
  │  calls sd_notify("WATCHDOG=1")   │
  │  every 30 seconds                │
  └──────────┬───────────────────────┘
             │ notify
  ┌──────────────────────────────────┐
  │  systemd                         │
  │  monitors service health         │
  │  kicks /dev/watchdog             │
  └──────────┬───────────────────────┘
             │ kick
  ┌──────────────────────────────────┐
  │  Hardware watchdog (bcm2835_wdt) │
  │  15s timeout                     │
  │  no kick ──► hard reboot         │
  └──────────────────────────────────┘

App crash --> systemd restarts app. systemd crash --> hardware reboots system.


Reliability Design Rules

Lessons from thousands of field deployments


Rules 1 & 2: Storage and Separation

Rule 1: Treat storage as failure-prone. SD cards wear out. eMMC has write limits. Design assuming writes can fail at any point.

Rule 2: Separate mutable data from system image.

  ┌──────────────────────────────────────────┐
  │  System image (read-only)                 │
  │  ── kernel, libs, binaries, config ──     │
  │  Cannot be corrupted during operation     │
  ├──────────────────────────────────────────┤
  │  Data partition (read-write)              │
  │  ── sensor logs, user config, state ──    │
  │  May corrupt, but won't prevent boot      │
  └──────────────────────────────────────────┘

Use fsync() for critical writes. Use checksums for integrity verification.


Rules 3 & 4: Rollback and Observability

Rule 3: Design rollback before first release.

  ✗  Ship v1.0 ──► field brick ──► add rollback to v1.1
     (too late -- v1.1 can't reach bricked devices)

  ✓  Build rollback into v1.0 ──► safe updates forever

Rule 4: Make failures observable.

Metric What It Reveals
Uptime Unexpected reboots (watchdog fired?)
Last sensor read Sensor cable disconnected?
Watchdog kick count System under stress?
Partition boot count Rollback happened?

A device that fails silently is worse than one that fails loudly.


Testing Reliability (Not Just Function)

Functional Test Reliability Test
"Does it read the sensor?" "Does it boot after power cut?"
"Does the update install?" "Does it rollback if update fails?"
"Does the service start?" "Does watchdog restart it if hung?"
Passes once = OK Must pass 5 consecutive times

Power-cut test: run system for 60s, pull power cable (no shutdown), reconnect. Verify: system boots, app starts, data before last fsync() is present. Repeat 5 times.


Putting It Together: Storage Strategy

  ┌──────────────────────────────────────────────────────┐
  │  Prototyping (Pi + SD card)                          │
  │                                                      │
  │  SD:  /boot (FAT32) + / (ext4 RO) + /data (F2FS)   │
  │  RAM: tmpfs for /tmp, overlayfs upper                │
  └──────────────────────────────────────────────────────┘

  ┌──────────────────────────────────────────────────────┐
  │  Production (custom board + eMMC)                    │
  │                                                      │
  │  eMMC: /boot + rootfs-A (SquashFS) + rootfs-B       │
  │        + /data (F2FS)                                │
  │  RAM:  tmpfs for /tmp and logs                       │
  │  Optional NOR: bootloader + recovery image           │
  └──────────────────────────────────────────────────────┘

RO root eliminates corruption. F2FS reduces wear. SquashFS compresses 50-70%. Never swap on flash.


Block 1 & 2 Summary

Mechanism Protects Against
Read-only rootfs Filesystem corruption from power loss
Overlayfs Need for writes without touching base image
A/B partitions Bricked device from failed update
Hardware watchdog Frozen system with no operator
systemd watchdog Hung application service
SquashFS / EROFS Compressed, corruption-proof root image
F2FS Flash wear from journaling overhead
No swap on flash Premature storage death

Reliability is designed, not assumed. Storage choice is part of that design.


Failure Mode Exercise

Apply what you just learned to three real scenarios


Exercise Overview

Format: Teams of 3-4 students, 30 minutes total

Each team designs a recovery strategy for three failure scenarios.

Deliverable per scenario: 1. What state is the device in after the failure? 2. What mechanism detects the problem? 3. What recovery action happens automatically? 4. What data is lost (acceptable losses)?

Prepare a 3-minute presentation of your strategies.


Scenario 1: Power Loss During Update

  ┌──────────────────────────────────────────┐
  │  SITUATION                                │
  │                                           │
  │  Remote weather station, solar powered.   │
  │  Cloud passes over panel during OTA       │
  │  update. Power dies at 73% of image       │
  │  write to flash.                          │
  │                                           │
  │  QUESTIONS                                │
  │  ── What partition layout prevents brick? │
  │  ── What happens on next boot?            │
  │  ── How does the device retry the update? │
  │  ── What if this happens 3 times?         │
  └──────────────────────────────────────────┘

Scenario 2: SD Card Corruption

  ┌──────────────────────────────────────────┐
  │  SITUATION                                │
  │                                           │
  │  Industrial data logger running 24/7.     │
  │  After 18 months of continuous logging,   │
  │  the SD card develops bad sectors.        │
  │  Boot fails -- kernel panic on rootfs     │
  │  mount.                                   │
  │                                           │
  │  QUESTIONS                                │
  │  ── How could the system have detected    │
  │     degradation before total failure?     │
  │  ── What storage strategy survives this?  │
  │  ── How do you get the device running     │
  │     again without physical access?        │
  │  ── What changes for eMMC vs SD card?     │
  └──────────────────────────────────────────┘

Scenario 3: Runaway Process

  ┌──────────────────────────────────────────┐
  │  SITUATION                                │
  │                                           │
  │  Smart irrigation controller in a field.  │
  │  After a rare sensor glitch, the main     │
  │  application enters an infinite loop.     │
  │  CPU usage hits 100%. The MQTT client     │
  │  stops reporting. Valves are stuck open.  │
  │                                           │
  │  QUESTIONS                                │
  │  ── What detects the hung application?    │
  │  ── What stops the valves from flooding?  │
  │  ── How do you distinguish "busy" from    │
  │     "hung" programmatically?              │
  │  ── What is the safe default valve state? │
  └──────────────────────────────────────────┘

Discussion Framework

For each scenario, work through this checklist:

  ┌──────────────────────────────────────────┐
  │  1. DETECT                                │
  │     What mechanism notices the failure?   │
  │     (watchdog / health check / monitor)   │
  ├──────────────────────────────────────────┤
  │  2. CONTAIN                               │
  │     How do you prevent cascading damage?  │
  │     (safe defaults / kill switch / fence) │
  ├──────────────────────────────────────────┤
  │  3. RECOVER                               │
  │     What action restores operation?       │
  │     (restart / rollback / reboot)         │
  ├──────────────────────────────────────────┤
  │  4. REPORT                                │
  │     How does the team learn it happened?  │
  │     (log / alert / metric / LED)          │
  └──────────────────────────────────────────┘

Presentation & Discussion (15 min)

Each team presents their three recovery strategies (3 minutes per team).

Class evaluates:

  • Did the strategy cover detection, containment, recovery, and reporting?
  • Is there a failure mode the team missed?
  • What is the worst-case data loss?
  • Would you trust this device in a field deployment?

There is no single correct answer -- but there are answers that ignore failure modes.


Key Takeaways

  • Reliability is designed, not assumed -- if you did not engineer it, it will not survive the field

  • Updates are an engineering discipline -- atomic, verifiable, recoverable, or do not ship

  • Watchdogs are a standard embedded safety tool -- not optional, not a nice-to-have

  • Test failure recovery, not just function -- pull the power cable, kill the process, corrupt the image

  • Every write is a risk -- minimize writes, separate mutable from immutable, always fsync()


Block 2

Embedded Networking, Protocols, and IoT Architecture


Embedded Networking -- The Starting Point

Linux provides the full network stack out of the box: - Same socket API as desktop Linux - Managed by systemd-networkd or NetworkManager - Same ip, ss, tcpdump tools you already know

The challenge is not "can Linux do networking?"

The challenge is choosing the right physical layer and protocol for your constraints -- power, bandwidth, range, and cost.


Physical Layer Comparison

Technology Range Bandwidth Power
Ethernet 100 m (cable) 100 Mbps+ Medium
WiFi (2.4/5 GHz) ~50 m indoor 50--300 Mbps High
BLE 5.0 ~100 m 2 Mbps Very low
LoRa 2--15 km 0.3--50 kbps Very low
Cat-M1 / NB-IoT Cellular 100 kbps--1 Mbps Low--Med

Physical Layer -- Use Cases

Technology Best For
Ethernet Factory, fixed install, high throughput
WiFi Consumer devices, flexible placement
BLE 5.0 Wearables, beacons, short-range sensors
LoRa Agriculture, remote monitoring
Cat-M1 / NB-IoT Wide-area, licensed spectrum

Design rule: Choose the lowest-power, lowest-bandwidth technology that meets your requirements. WiFi is convenient but drains batteries.


The Networking Stack

How data moves from your application to the wire:

center

The OSI/TCP-IP networking stack: application protocols (MQTT, HTTP) at the top, transport (TCP/UDP) and network (IP) in the middle, physical layer at the bottom.

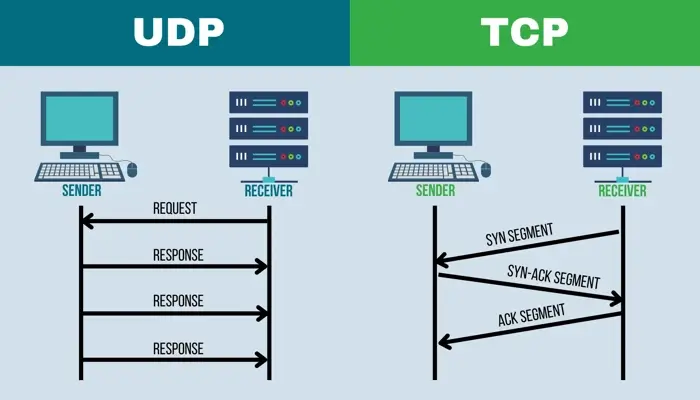

Transport Layer: TCP vs UDP

Application protocols ride on top of transport protocols that handle delivery mechanics.

center

TCP vs UDP: TCP guarantees ordered delivery with retransmission; UDP trades reliability for lower latency and overhead.


TCP -- Connection-Oriented

  Client                          Server
    │                               │
    │──── SYN ─────────────────────▶│
    │◀─── SYN+ACK ─────────────────│
    │──── ACK ─────────────────────▶│
    │                               │
    │    (connection established)    │
    │                               │
    │──── Data ────────────────────▶│
    │◀─── ACK ─────────────────────│
    │                               │
  • 3-way handshake before any data flows
  • Guaranteed delivery -- retransmits lost packets
  • Ordered -- data arrives in sequence
  • Higher overhead -- connection state, ACKs, retransmit timers

UDP -- Connectionless

  Client                          Server
    │                               │
    │──── Data ────────────────────▶│
    │──── Data ────────────────────▶│
    │──── Data ────────────────────▶│
    │                               │
    │   (no handshake, no ACKs,     │
    │    no guarantee of delivery)  │
    │                               │
  • No connection setup -- just send
  • Best-effort -- packets may be lost or reordered
  • Lower overhead -- no connection state, no retransmits
  • Ideal for constrained devices on lossy networks

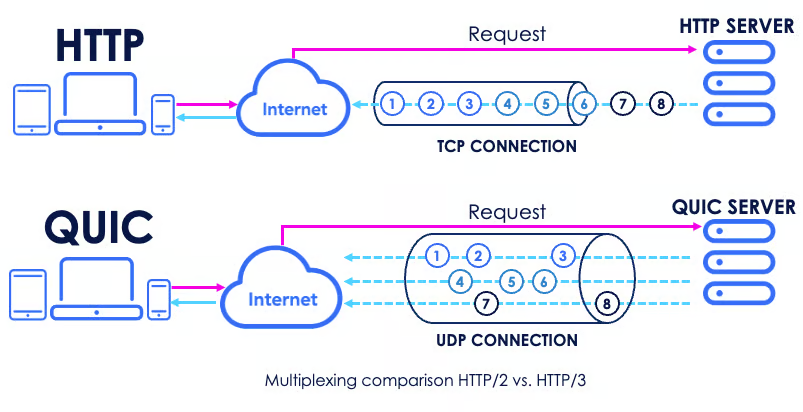

QUIC -- The Modern Middle Ground

center

QUIC: a modern transport protocol built on UDP, adding reliability, multiplexed streams, and built-in TLS 1.3 encryption.

  • Built on top of UDP but adds reliability
  • Multiplexed streams -- no head-of-line blocking
  • Built-in TLS 1.3 -- encrypted by default
  • Emerging for edge-to-cloud (HTTP/3)

Transport Layer Summary

Protocol Connection Reliability Overhead Used By
TCP Yes (handshake) Guaranteed Higher HTTP, MQTT, SSH
UDP No Best-effort Lower CoAP, DNS, NTP
QUIC Yes (over UDP) Guaranteed Medium HTTP/3, cloud APIs

When you pick MQTT, you get TCP. When you pick CoAP, you get UDP. The application protocol makes this choice for you.


Application Protocols for IoT

Protocol Model Overhead Best For
MQTT Pub/sub, broker Low (~15–30 B typical) IoT telemetry, events
CoAP REST-like, UDP Very low Constrained devices
HTTP/REST Req/response, TCP High (~500+ B) Cloud APIs, dashboards
gRPC RPC, HTTP/2, Protobuf Medium (binary) Service-to-service

For most embedded sensor applications: MQTT. For very constrained MCUs needing REST semantics: CoAP.


MQTT in 30 Seconds

  Sensor ──publish──▶ Broker (mosquitto) ──deliver──▶ Dashboard
    topic: "factory/line3/temperature"
    payload: {"temp_c": 23.5, "ts": 1700000000}

Quality of Service levels:

QoS Name Guarantee Speed
0 Fire and forget May lose messages Fastest
1 At least once Guaranteed, possible dupes Balanced
2 Exactly once Strongest guarantee Slowest

Pragmatic default: QoS 1 for sensor telemetry.


MQTT -- Why It Wins for IoT

  • Tiny overhead — 2–5 byte fixed header; typical total overhead ~15–30 bytes including topic (vs ~500 bytes for HTTP headers)
  • Pub/sub model -- decouple producers from consumers
  • Retained messages -- new subscribers get last known value
  • Last Will and Testament -- broker notifies when device disconnects
  • Widespread support -- mosquitto, HiveMQ, AWS IoT Core, Azure IoT Hub
  # Python example (paho-mqtt)
  import paho.mqtt.client as mqtt

  client = mqtt.Client()
  client.connect("broker.local", 1883)
  client.publish("sensors/temp", '{"c": 23.5}', qos=1)

IoT Architecture: Edge, Gateway, Cloud

  ┌─────────────────┐
  │   Edge Devices   │    BLE / LoRa / Wired
  │  ┌─────┐        │         │
  │  │ S1  │ S2  SN │─────────┤
  │  └─────┘        │         │
  └─────────────────┘         ▼
                      ┌───────────────┐   WiFi / 4G
                      │    Gateway     │──────────┐
                      │  Aggregation   │          │
                      │  Local Rules   │          ▼
                      └───────────────┘   ┌──────────────┐
                                          │    Cloud      │
                                          │ ┌──────────┐  │
                                          │ │  Broker   │  │
                                          │ │  DB       │  │
                                          │ │  Dashboard│  │
                                          │ └──────────┘  │
                                          └──────────────┘

This pattern scales from 1 to 100,000 devices.


Why Three Tiers?

Tier Role Example
Edge Sense, actuate, preprocess Temperature sensor, motor controller
Gateway Aggregate, filter, protocol translate RPi running MQTT broker + rules
Cloud Store, analyze, visualize, alert AWS IoT Core + Grafana dashboard

Why not connect sensors directly to the cloud? - Many sensors lack WiFi/cellular (BLE, LoRa only) - Direct cloud connections per sensor don't scale (10,000 TLS handshakes) - Gateway provides local intelligence when cloud is unreachable


Edge Computing -- Process Locally, Send Summaries

A temperature sensor sending every second: - 86,400 messages/day per sensor - x 10,000 sensors = 864 million messages/day

An edge gateway sending min/max/average per minute: - 1,440 messages/day per sensor - 60x reduction in bandwidth and cloud cost

  Edge (raw):   23.5, 23.6, 23.5, 23.7, 23.4, ...  (1 Hz)
                         [gateway]
  Cloud (summary): {"min":23.4, "max":23.7, "avg":23.54}  (1/min)

Edge Computing -- What Stays Local?

Process Locally Send to Cloud
Threshold alarms (> 80C? act NOW) Aggregated time-series data
Filtering and denoising Anomaly reports
Protocol translation (BLE to MQTT) Trend analysis inputs
Local display updates Long-term storage
Safety-critical decisions Fleet-wide dashboards

Rule of thumb: If it needs sub-second response, do it at the edge. If it needs historical context, send it to the cloud.


Mini Exercise: Protocol Selection

Your level display streams measurement data to a remote dashboard. Connected via Ethernet in a factory.

Discuss (2 minutes):

  1. Which protocol would you choose? Why?
  2. What QoS level? Why?
  3. How often should you send data? Trade-off?

Block 2 Summary

  • Physical layer -- choose lowest-power, lowest-bandwidth that works
  • Transport -- TCP for reliability (MQTT, HTTP), UDP for low overhead (CoAP)
  • Application protocol -- MQTT for most IoT, CoAP for constrained devices
  • Architecture -- Edge, Gateway, Cloud -- three tiers for scalability
  • Edge computing -- process locally, send summaries (10--100x cost reduction)

Block 3

Security, OTA Updates, and Containers


"It Works on My Bench"

Your data logger works perfectly: - Reads sensor correctly - Displays on OLED - Logs to SD card

But in production, it also: - Has an IP address on the public internet - Runs 24/7 unattended - Contains credentials for your cloud service - Can be physically accessed by anyone in the building

Security is not an add-on. It is a design constraint.


Three Attack Surfaces

Every embedded device has exactly three attack surfaces:

Surface Examples Difficulty
Physical JTAG, UART console, SD card Requires physical access
Network Open ports, unencrypted traffic Remote, scalable
Software CVEs, unsigned firmware, defaults Remote, automatable
           Physical         Network          Software
           ┌───────┐       ┌────────┐       ┌──────────┐
           │ JTAG  │       │ Open   │       │ Default  │
           │ UART  │       │ ports  │       │ passwords│
           │ SD    │       │ Plain  │       │ Old libs │
           │ USB   │       │ text   │       │ No signing│
           └───────┘       └────────┘       └──────────┘

Threat Modeling -- The Most Important Security Practice

Before writing any security code, think systematically about what can go wrong:

  • List all interfaces -- network ports, debug headers, USB, wireless
  • For each: who can access it? What can they do?
  • Rank by likelihood x impact
  • Mitigate the top risks first

A device with an open UART console giving root access is not "physically secure" -- it takes 30 seconds and a $3 USB-to-serial adapter to compromise.


CVE Case Study: Mirai Botnet (2016)

What happened: - Malware scanned the internet for IoT devices (cameras, routers) - Tried default credentials (admin/admin, root/root) - Infected ~600,000 devices - Launched DDoS attacks reaching 1.2 Tbps

Attack vector: default Telnet credentials (admin/admin). Telnet transmits passwords in plaintext and was open to the internet.

Fix: disable Telnet, change default credentials, use SSH keys.

Root cause: Default credentials never changed. No requirement for unique passwords at first boot.

Lesson: The most devastating IoT attack in history exploited the most basic mistake.


CVE Case Study: Heartbleed (2014)

CVE-2014-0160 -- OpenSSL TLS Heartbeat Extension

  Client:  "Hey, echo back 'hello' (5 bytes)"
  Server:  "hello"  ← correct

  Attacker: "Hey, echo back 'hi' (64000 bytes)"
  Server:   "hi" + 63998 bytes of server memory
             ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
             Private keys, session tokens, passwords

Root cause: Missing bounds check on the memcpy() length parameter. The fix was two lines of C code — but the vulnerability affected every OpenSSL installation worldwide.

Fix: Update OpenSSL (or use mbedTLS for embedded).


CVE Case Study: Unsigned Firmware

Generic pattern seen in routers, PLCs, medical devices:

  Legitimate flow:
  Server ──[signed firmware v2.1]──▶ Device ──[verify + flash]──▶ OK

  Attack flow:
  Attacker ──[malicious binary]──▶ Device ──[no verification]──▶ Owned

Root cause: No cryptographic signature verification on firmware images.

Fix: Sign all firmware with Ed25519/RSA. Verify before flashing.

Every one of these attacks exploited a known, preventable weakness.


The Hardening Checklist

# Rule How
1 Minimal rootfs Buildroot -- include only what you need
2 Read-only rootfs Mount root as read-only + overlayfs
3 No default passwords Unique credential at first boot
4 Signed firmware Cryptographic signature on all images

The Hardening Checklist (cont.)

# Rule How
5 TLS everywhere No plaintext MQTT, HTTP, or telnet
6 Disable debug interfaces Remove JTAG, UART in production
7 Regular CVE scanning Monitor NVD feeds for your libs
8 Least privilege Run services as non-root; use capabilities

Mirai = violated #3. Heartbleed = violated #7. Unsigned firmware = violated #4.

Basic hygiene prevents the majority of real-world attacks.


TLS on Embedded: What Goes Wrong

TLS is mandatory (#5 on the checklist), but embedded devices make it hard:

Challenge Why It Happens Consequence
Clock drift No battery-backed RTC, NTP unavailable at boot Certificate validation fails (cert appears expired or not-yet-valid)
RAM pressure TLS handshake needs ~200 KB RAM On 256 KB MCUs, TLS may not fit alongside the application
CA bundle management Root certificates expire every 5--20 years Devices in the field for 10+ years need CA bundle updates
Certificate rotation Server certs change every 90 days (Let's Encrypt) Pinned certs break; must pin CA, not leaf cert

Practical rule: Use mbedTLS (not OpenSSL) on constrained devices. Sync time before TLS. Pin the CA certificate, not the server certificate. Test certificate expiry handling — it will happen.


OTA Updates -- Essential but Dangerous

OTA (Over-The-Air) updates are essential for fixing vulnerabilities.

But the update mechanism itself is an attack vector.

Easy Updates No Updates
Pro Patch vulnerabilities fast No attack surface from updater
Con Updater can be exploited Unpatched CVEs forever

You must have OTA. You must secure it.


OTA Frameworks

Framework Approach A/B Partition Signing
SWUpdate Image or package Yes RSA/CMS
RAUC Image-based Yes X.509
Mender Image or package Yes RSA
Manual dd Raw image Manual None

All serious frameworks support rollback on failed update.

Never use manual dd in production.


A/B Update Flow

  Device                              Server
    │                                    │
    │── Check for update (auth) ────────▶│
    │◀── Signed image v2.1 available ───│
    │                                    │
    │── Download to partition B          │
    │── Verify signature                 │
    │── Set bootloader: try B            │
    │── Reboot into B                    │
    │                                    │
    │── Health check...                  │
    │                                    │
    ├── [PASS] ── Confirm B as active    │
    │             Report success ───────▶│
    │                                    │
    └── [FAIL] ── Reboot, fallback to A  │
                  Report failure ───────▶│

A/B Partitions -- Why?

  ┌──────────────────────────────────────────┐
  │  Boot   │  Rootfs A   │  Rootfs B  │ Data│
  │  loader │  (active)   │  (standby) │     │
  └──────────────────────────────────────────┘
                   │              ▲
                   │   update     │
                   └──────────────┘
  • Never modify the running partition -- write to standby
  • Atomic switch -- bootloader changes one pointer
  • Automatic rollback -- if health check fails, revert
  • Zero downtime -- device is always running a known-good image

Virtualization vs Containers

As devices grow complex -- multiple apps, web UIs, different dependencies -- isolation matters.

Virtual Machine Container
Isolation Strong (own kernel) Medium (shared kernel)
Overhead High (full OS) Low (MB)
Startup Seconds to minutes Milliseconds to seconds
Own kernel Yes No
Embedded use Mixed-criticality Multi-service gateway

Containers in Embedded

Containers use Linux kernel features for isolation:

  ┌─────────────────────────────────────┐
  │           Host Linux Kernel          │
  ├───────────┬───────────┬─────────────┤
  │ Container │ Container │ Container   │
  │  App A    │  App B    │  MQTT Broker│
  │ (Python)  │ (Node.js) │ (mosquitto) │
  └───────────┴───────────┴─────────────┘

  Namespaces: PID, mount, network, user
  cgroups:    CPU, memory, I/O limits
  • Docker/Podman for development
  • balena, snap, OCI runtimes for embedded deployment

When to Use What

Scenario Recommendation
Single-app appliance (level display) No containers -- keep it simple
Multi-service gateway (logger + web + MQTT) Containers -- isolate and update independently
Mixed-criticality (RTOS control + Linux HMI) VM / hypervisor -- strongest isolation

Containers require ~64 MB+ RAM and a full kernel with namespace/cgroup support.

On very constrained devices, use systemd sandboxing instead: DynamicUser=, ProtectSystem=, MemoryMax=


Threat Model Exercise -- Your Data Logger

Consider the level display project from the tutorials.

Step 1: List attack vectors (2 min) - Physical: UART console, SD card, USB port, case access - Network: SSH, MQTT port, web UI, unencrypted traffic - Software: default Pi password, old kernel, unsigned updates

Step 2: Rate each -- Likelihood x Impact

Step 3: Propose mitigations for top 3 risks


Threat Model -- Example Analysis

Vector Likelihood Impact Mitigation
Default SSH password High High Key-only SSH, disable password auth
Unencrypted MQTT High Medium TLS on port 8883
Open UART console Medium High Disable in production build
Old OpenSSL Medium High CVE scanning, auto-rebuild
SD card theft Low High Encrypted rootfs, signed boot

Easiest win from the hardening checklist: #3 -- no default passwords.


Design Challenge

You are deploying 500 temperature sensors in a factory.

  1. Draw the network architecture (edge, gateway, cloud)
  2. Choose the physical layer and protocol -- justify
  3. List the top 3 security measures you would implement
  4. How would you handle OTA updates? Which framework?

(Group discussion -- 10 minutes)


Quick Checks

  1. Name two advantages of MQTT over HTTP for IoT telemetry.
  2. What is the difference between MQTT QoS 0 and QoS 1?
  3. What made the Mirai botnet possible? What is the fix?
  4. Why is a read-only rootfs a security measure?
  5. What is the risk of OTA updates without signature verification?

Key Takeaways

  • Right protocol for your constraints -- MQTT for most IoT, CoAP for constrained
  • Edge computing reduces bandwidth and cloud costs by 10--100x
  • Three attack surfaces -- physical, network, software -- model all three
  • Basic hygiene prevents most real attacks (Mirai, Heartbleed)
  • Harden systematically -- minimal rootfs, read-only root, signed firmware, TLS
  • OTA is security-critical -- use a framework with signing and rollback
  • Containers for multi-service; VMs for mixed-criticality; nothing for simple appliances

Hands-On Next

Put this theory into practice:

Security Audit and Hardening -- audit ports, harden SSH, set up a basic firewall on your Raspberry Pi.

Data Logger Appliance -- build a reliable, updatable data logger with MQTT telemetry and OTA support.

Your bench prototype becomes a production-ready appliance.
